Permanent Lift Magnets
Magnets

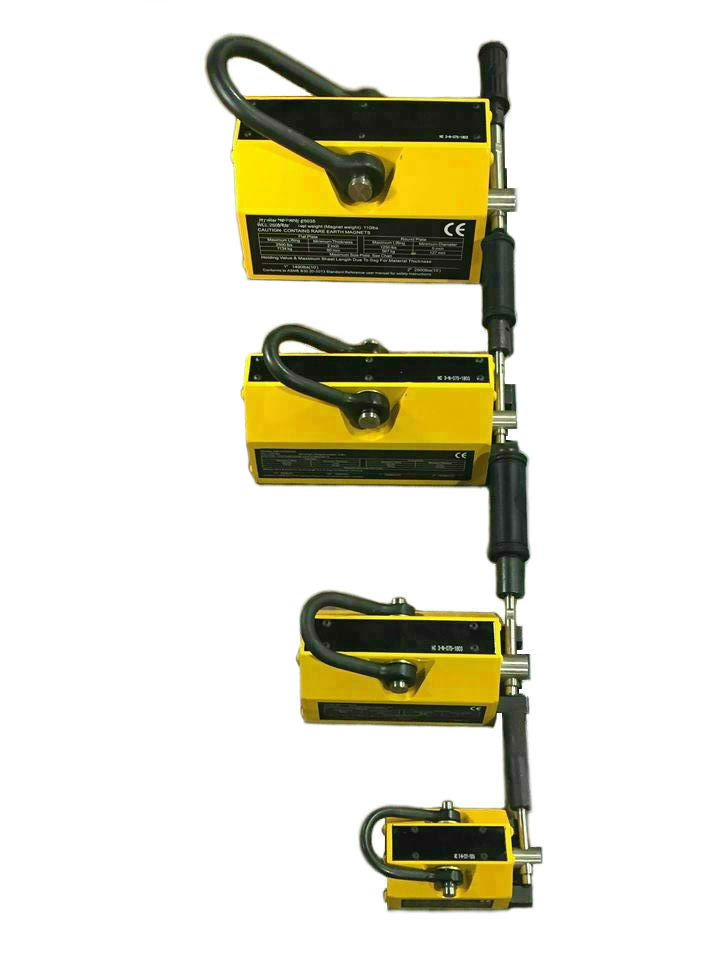

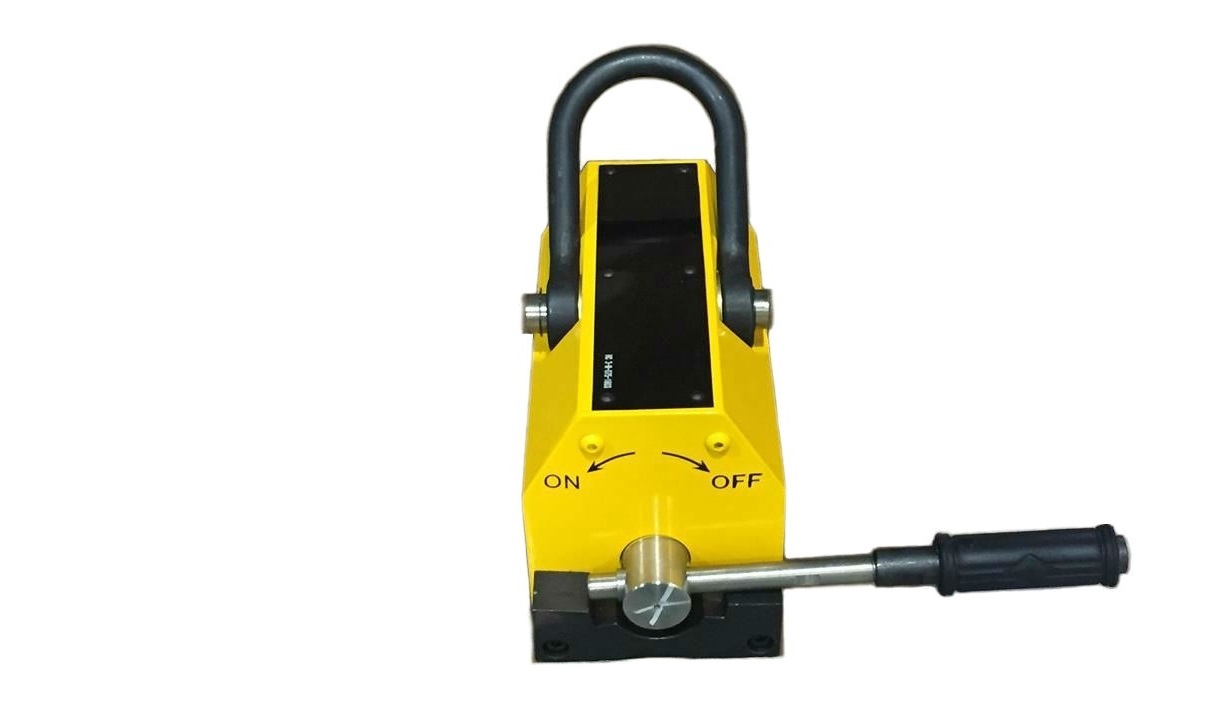

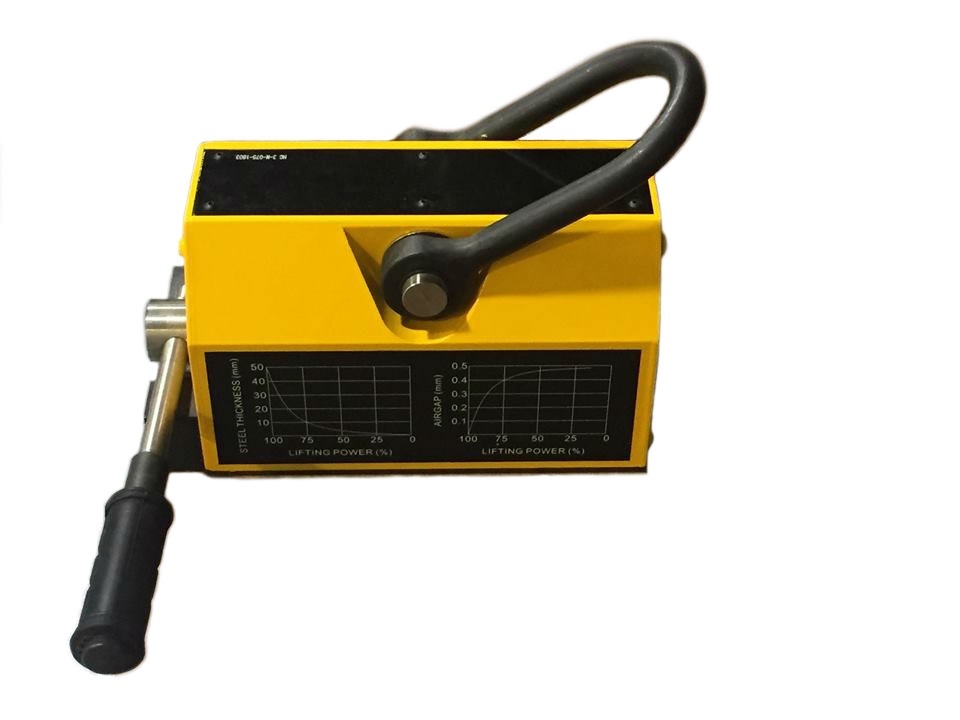

JBF National's permanent lift magnet systems feature the highest quality neodymium rare earth magnets, and have been designed and tested to handle any industrial application. Load activation comes via a simple turning handle that features a locking mechanism to ensure that the suspended load stays that way until disengagement by the operator. Due to the electricity free design of these magnetic lifters, moving ferrous materials becomes an exceedingly low cost task. Maximum breakaway force is three times the flat surface lifting capacity on all models.
Item # |
Length |
Width |
Height |
Flat Capacity |
Round Capacity |
|---|---|---|---|---|---|
| 1PLM-100 1PLM-100/Asset/Permanent-Lift-Magnet---Front-View---Finished---Copy-90-.jpg | Length N/A 6.1 in | Width N/A 2.7 in | Height N/A 5.4 in | Flat Capacity N/A 250 lb | Round Capacity N/A 125 lb |
| 1PLM-101 1PLM-101/Asset/Permanent-Lift-Magnet---Front-View---Finished---Copy-90-.jpg | Length N/A 8.4 in | Width N/A 3.6 in | Height N/A 7.3 in | Flat Capacity N/A 800 lb | Round Capacity N/A 400 lb |
| 1PLM-102 1PLM-102/Asset/Permanent-Lift-Magnet---Front-View---Finished---Copy-90-.jpg | Length N/A 11.8 in | Width N/A 4.8 in | Height N/A 9.8 in | Flat Capacity N/A 1600 lb | Round Capacity N/A 800 lb |
| 1PLM-103 1PLM-103/Asset/Permanent-Lift-Magnet---Front-View---Finished---Copy-90-.jpg | Length N/A 14.1 in | Width N/A 6.9 in | Height N/A 11.7 in | Flat Capacity N/A 2500 lb | Round Capacity N/A 1250 lb |
| 1PLM-104 1PLM-104/Asset/Permanent-Lift-Magnet---Front-View---Finished---Copy-90-.jpg | Length N/A 18.8 in | Width N/A 9.2 in | Height N/A 16 in | Flat Capacity N/A 4400 lb | Round Capacity N/A 2200 lb |
