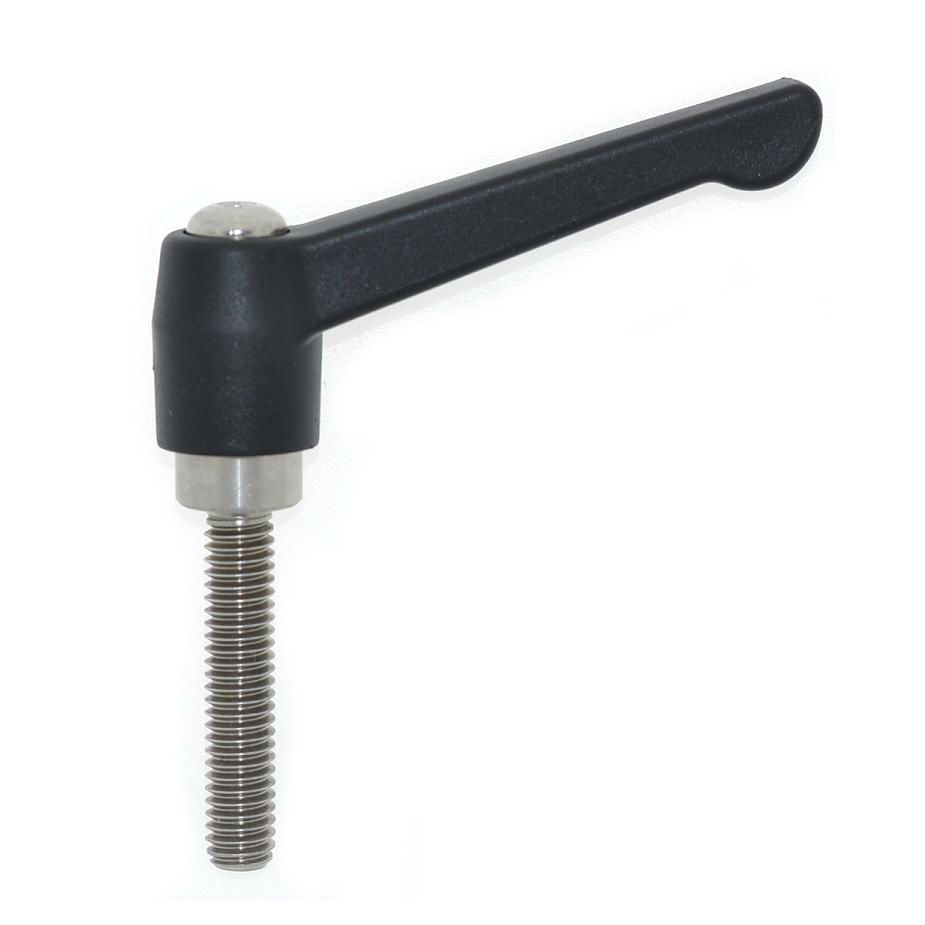

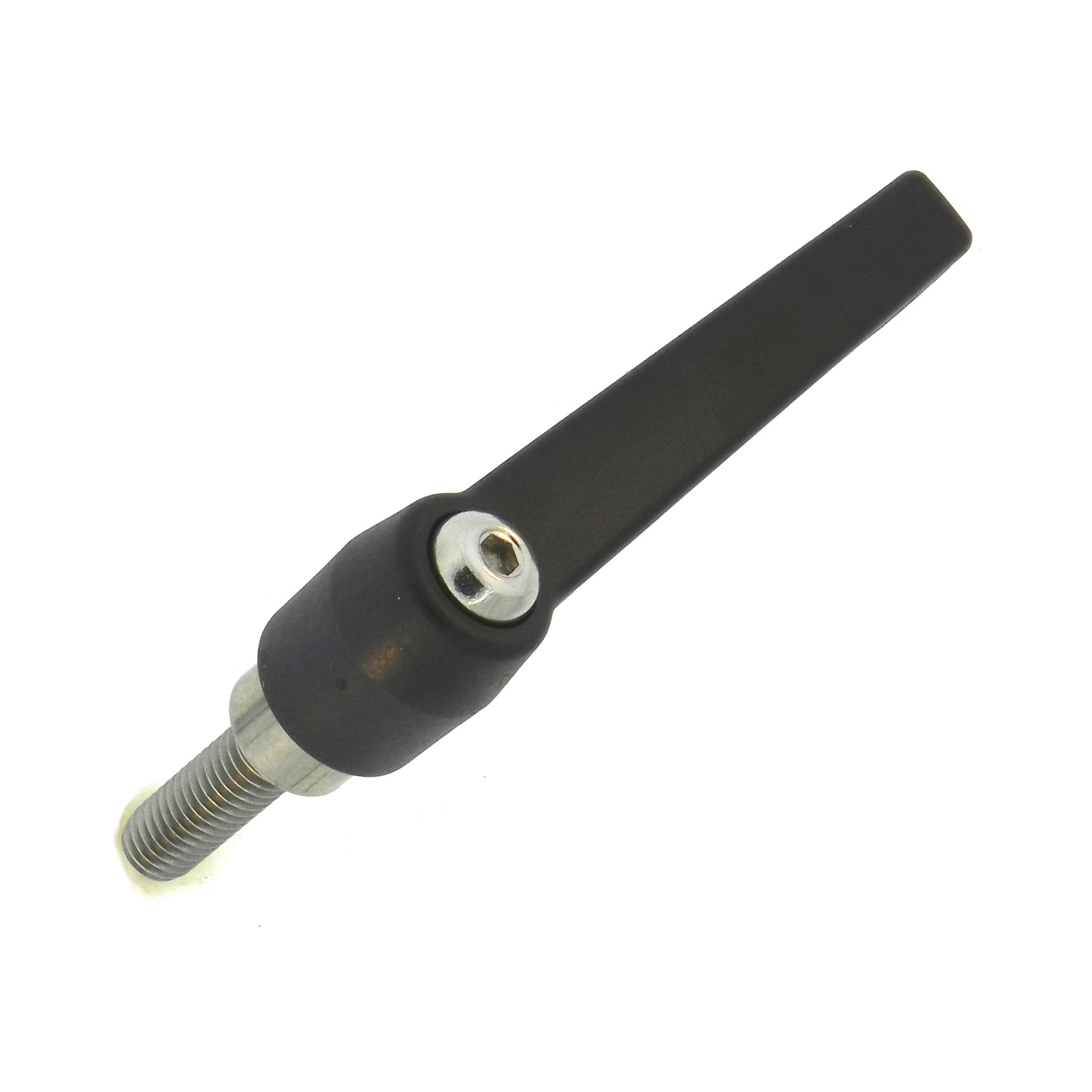

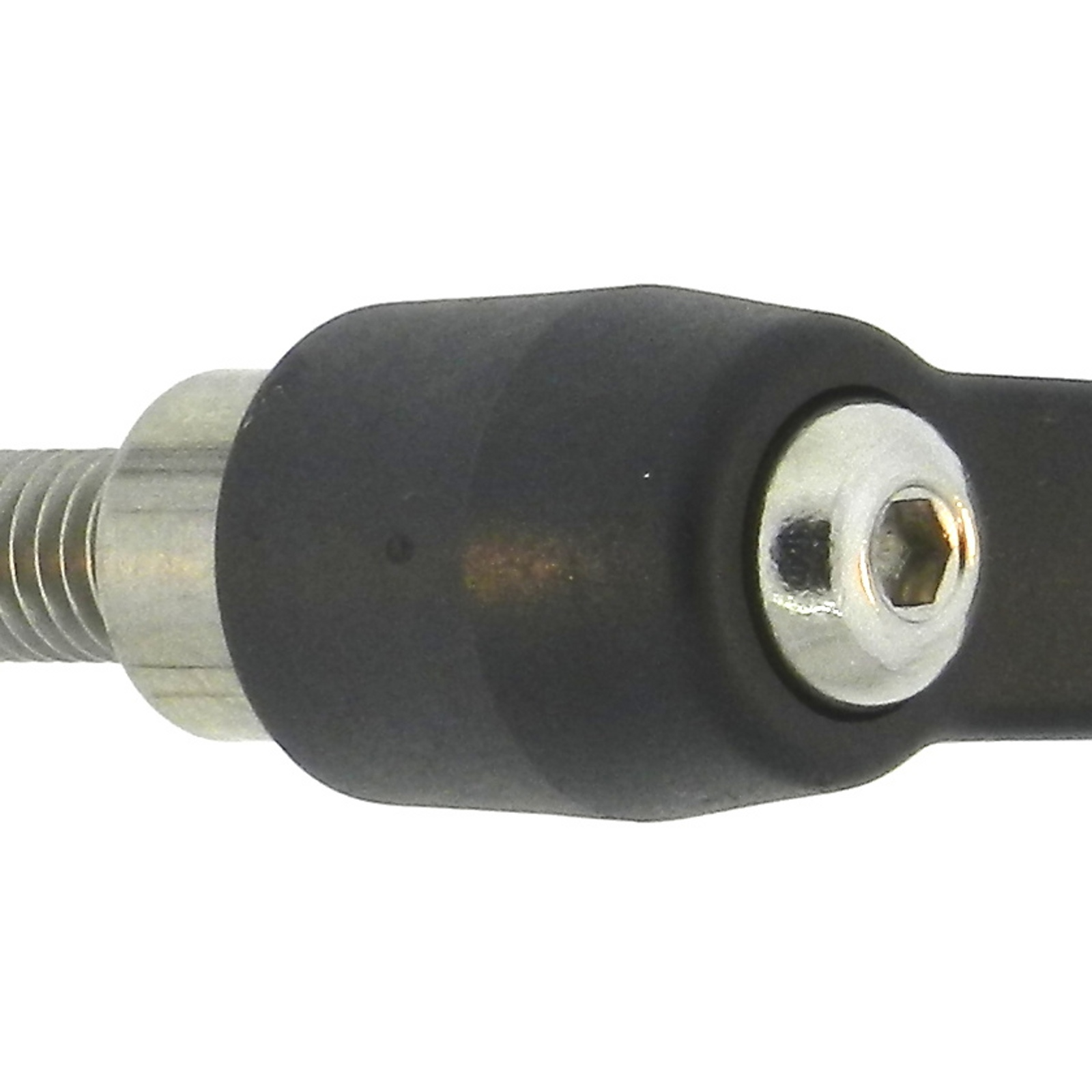

This classic style adjustable handle from JBF National is fashioned using Nylon 6 and is reinforced with a 30% glass fiber content mixture to enhance durability. This adjustable handle (also known as a clamping lever) features both premium 303 stainless steel components, and a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHs compliant. Inch and Metric versions available along with a variety of stud lengths.
1 - 94 of 94 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

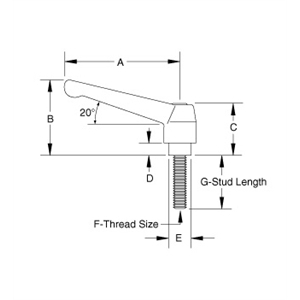

Dimension A (in)

Dimension B (in)

Dimension C (in)

Dimension D (in)

Dimension E (in)

F-Thread

G-Stud Length (in)

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

F-Thread

G-Stud Length

Drawings

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.39 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.47 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.59 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.63 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.78 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 0.98 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 1.18 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-32 N/A 1.26 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.39 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.47 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.59 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.63 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.78 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 0.98 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 1.18 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 10-24 N/A 1.26 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.39 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.47 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.59 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.63 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.78 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 0.98 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 1.18 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 1.26 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 1.57 in

N/A 1.77 in N/A 1.38 in N/A 0.96 in N/A 0.16 in N/A 0.57 in N/A 1/4-20 N/A 1.77 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 1/4-20 N/A 0.47 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 1/4-20 N/A 0.63 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 1/4-20 N/A 0.78 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 1/4-20 N/A 0.98 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 0.47 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 0.59 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 0.63 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 0.78 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 0.98 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 1.18 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 1.26 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 1.57 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 1.77 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 1.97 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 2.36 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 5/16-18 N/A 2.48 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 0.59 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 0.63 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 0.78 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 0.98 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 1.18 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 1.26 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 1.57 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 1.77 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 1.97 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 2.36 in

N/A 2.48 in N/A 1.77 in N/A 1.22 in N/A 0.26 in N/A 0.76 in N/A 3/8-16 N/A 2.48 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 0.59 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 0.63 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 0.78 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 0.98 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 1.18 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 1.26 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 1.57 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 1.77 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 1.97 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 2.36 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 3/8-16 N/A 2.48 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 0.63 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 0.78 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 0.98 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 1.26 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 1.57 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 1.77 in

N/A 3.07 in N/A 2.17 in N/A 1.42 in N/A 0.31 in N/A 0.86 in N/A 1/2-13 N/A 1.97 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 0.59 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 0.63 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 0.78 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 0.98 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 1.18 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 1.26 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 1.57 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 1.77 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 1.97 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 2.36 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 3/8-16 N/A 2.48 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 0.59 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 0.63 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 0.78 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 0.98 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.18 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.26 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.38 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.57 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.77 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 1.97 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 2.36 in

N/A 3.62 in N/A 2.56 in N/A 1.69 in N/A 0.43 in N/A 0.99 in N/A 1/2-13 N/A 2.48 in
