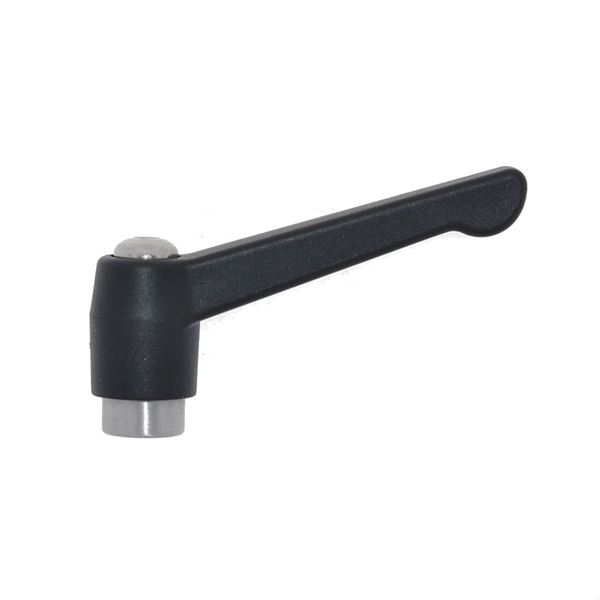

This classic style adjustable handle from JBF National is fashioned using Nylon 6 and is reinforced with a 30% glass fiber content mixture to enhance durability. This adjustable handle (also known as a clamping lever) features both premium 303 stainless steel components, and a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHS compliant. Inch and Metric versions available.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

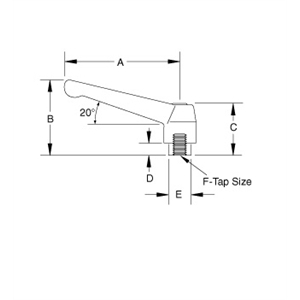

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Dimension E (mm)

Dimension F

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

Dimension F

Drawings

N/A 45 mm N/A 35 mm N/A 24.5 mm N/A 4 mm N/A 10 mm N/A M5

N/A 45 mm N/A 35 mm N/A 24.5 mm N/A 4 mm N/A 10 mm N/A M6

N/A 45 mm N/A 35 mm N/A 24.5 mm N/A 4 mm N/A 10 mm N/A 5 mm Ream

N/A 45 mm N/A 35 mm N/A 24.5 mm N/A 4 mm N/A 10 mm N/A M4

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 13.5 mm N/A M6

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 13.5 mm N/A M8

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 13.5 mm N/A 6 mm Ream

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 13.5 mm N/A 8 mm Ream

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 16 mm N/A M8

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 16 mm N/A M10

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 16 mm N/A 8 mm Ream

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 16 mm N/A 10 mm Ream

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 19 mm N/A M10

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 19 mm N/A M12

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 19 mm N/A 10 mm Ream

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 19 mm N/A 12 mm Ream
