Heavy Duty Adjustable Handles with Steel Stud Insert
Adjustable Handles

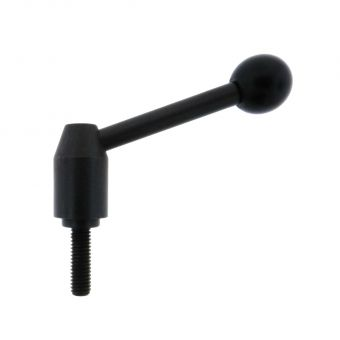

JBF National manufactures this adjustable handle (also known as a clamping lever) using the highest quality steel and black oxide coating to ensure lasting durability. The black gloss phenolic ball knob handle end, ensures rotation ease of use and added comfort to the operator’s palm and fingers. This adjustable handle maintains a 360 degree rotation of adjustment, is RoHS compliant, and comes in other ball knob finishes such as aluminum and chrome steel to suit your needs. Variety of stud lengths available.

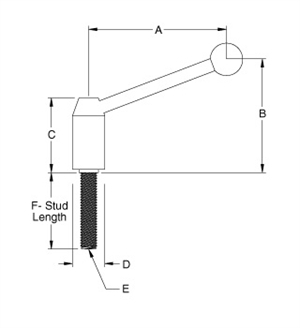

Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
E-Thread |
F-Length |
Drawings |
|---|---|---|---|---|---|---|---|
| 1HD-2271 1HD-2271/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 1/4-20 | F-Length N/A 0.47 in |
Drawings
 |
| 1HD-2272 1HD-2272/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 1/4-20 | F-Length N/A 0.63 in |
Drawings
|
| 1HD-2273 1HD-2273/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 1/4-20 | F-Length N/A 0.78 in |
Drawings
|
| 1HD-2274 1HD-2274/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 1/4-20 | F-Length N/A 0.98 in |
Drawings
|
| 1HD-2275 1HD-2275/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 0.78 in |
Drawings
|
| 1HD-2276 1HD-2276/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.18 in |
Drawings
|
| 1HD-2277 1HD-2277/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.57 in |
Drawings
|
| 1HD-2278 1HD-2278/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.77 in |
Drawings
|
| 1HD-2279 1HD-2279/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.96 in |
Drawings
|
| 1HD-2280 1HD-2280/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 2.36 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 2.36 in |
Drawings
|
| 2HD-2281 2HD-2281/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 0.78 in |
Drawings
|
| 2HD-2282 2HD-2282/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.18 in |
Drawings
|
| 2HD-2283 2HD-2283/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.57 in |
Drawings
|
| 2HD-2284 2HD-2284/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.77 in |
Drawings
|
| 2HD-2285 2HD-2285/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 1.96 in |
Drawings
|
| 2HD-2286 2HD-2286/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 5/16-18 | F-Length N/A 2.36 in |
Drawings
|
| 2HD-2287 2HD-2287/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 0.78 in |
Drawings
|
| 2HD-2288 2HD-2288/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 1.18 in |
Drawings
|
| 2HD-2289 2HD-2289/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 1.57 in |
Drawings
|
| 2HD-2290 2HD-2290/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 1.77 in |
Drawings
|
| 2HD-2291 2HD-2291/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 1.96 in |
Drawings
|
| 2HD-2292 2HD-2292/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.19 in | Dimension B N/A 2.52 in | Dimension C N/A 1.73 in | Dimension D N/A 0.94 in | E-Thread N/A 3/8-16 | F-Length N/A 2.36 in |
Drawings
|
| 3HD-2293 3HD-2293/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 0.78 in |
Drawings
|
| 3HD-2294 3HD-2294/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 1.18 in |
Drawings
|
| 3HD-2295 3HD-2295/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 1.57 in |
Drawings
|
| 3HD-2296 3HD-2296/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 1.77 in |
Drawings
|
| 3HD-2297 3HD-2297/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 1.96 in |
Drawings
|
| 3HD-2298 3HD-2298/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 1/2-13 | F-Length N/A 2.36 in |
Drawings
|
| 3HD-2299 3HD-2299/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 0.63 in |
Drawings
|
| 3HD-2300 3HD-2300/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 0.78 in |
Drawings
|
| 3HD-2301 3HD-2301/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 0.98 in |
Drawings
|
| 3HD-2302 3HD-2302/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 1.26 in |
Drawings
|
| 3HD-2303 3HD-2303/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 1.57 in |
Drawings
|
| 3HD-2304 3HD-2304/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 1.77 in |
Drawings
|
| 3HD-2305 3HD-2305/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 1.96 in |
Drawings
|
| 3HD-2306 3HD-2306/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 2.36 in |
Drawings
|
| 3HD-2307 3HD-2307/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 3.9 in | Dimension B N/A 3.43 in | Dimension C N/A 2.23 in | Dimension D N/A 1.3 in | E-Thread N/A 3/8-16 | F-Length N/A 2.48 in |
Drawings
|
| 4HD-2308 4HD-2308/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 1/2-13 | F-Length N/A 1.57 in |
Drawings
|
| 4HD-2309 4HD-2309/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 1/2-13 | F-Length N/A 2.17 in |
Drawings
|
| 4HD-2310 4HD-2310/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 1/2-13 | F-Length N/A 3.15 in |
Drawings
|
| 4HD-2311 4HD-2311/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 5/8-11 | F-Length N/A 0.98 in |
Drawings
|
| 4HD-2312 4HD-2312/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 5/8-11 | F-Length N/A 1.18 in |
Drawings
|
| 4HD-2313 4HD-2313/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 5/8-11 | F-Length N/A 1.57 in |
Drawings
|
| 4HD-2314 4HD-2314/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 5/8-11 | F-Length N/A 2.17 in |
Drawings
|
| 4HD-2315 4HD-2315/Asset/Heavy-Duty-Adjustable-handle---1JPG.png | Dimension A N/A 4.65 in | Dimension B N/A 3.94 in | Dimension C N/A 2.63 in | Dimension D N/A 1.62 in | E-Thread N/A 5/8-11 | F-Length N/A 2.36 in |
Drawings
|
