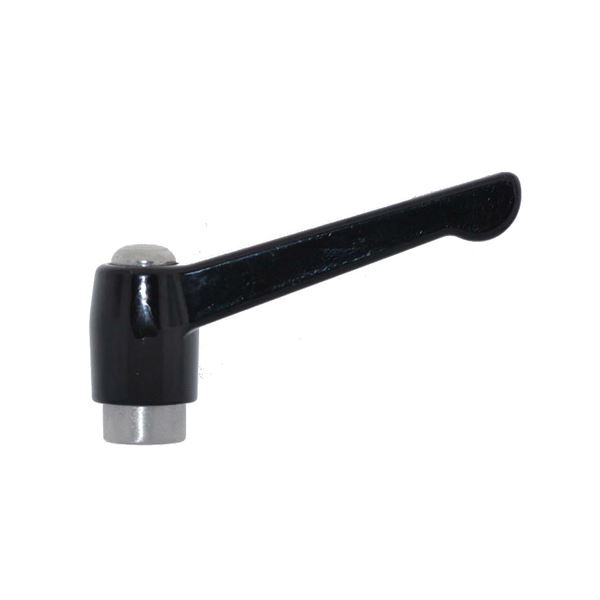

• Classic Style Imperial Zinc Adjustable Handles with Stainless Steel Tapped Insert
  • Classic Style Imperial Zinc Adjustable Handles with Stainless Steel Tapped Insert - 3
  • Classic Style Imperial Zinc Adjustable Handles with Stainless Steel Tapped Insert - 4

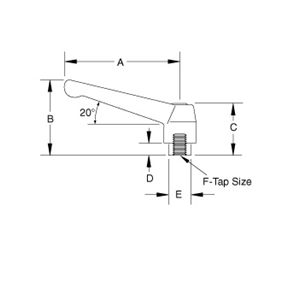

  • <!-Classic Style Imperial Zinc Adjustable Handles with Stainless Steel Tapped Insert Line Drawing->
This JBF National classic style zinc adjustable handle comes in a variety of colors including red, yellow, gray and blue in addition to the standard black powder finish so as to suit any and all project needs. This adjustable handle (also known as a clamping lever) is fashioned using premium 303 stainless steel components, is RoHS compliant, and features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. Inch and Metric versions available.
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Dimension A (in)

Dimension B (in)

Dimension C (in)

Dimension D (in)

Dimension E (in)

Dimension F

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

Dimension F

Drawings

N/A 1.77 in N/A 1.38 in N/A 0.95 in N/A 0.13 in N/A 0.39 in N/A 10-24

N/A 1.77 in N/A 1.38 in N/A 0.95 in N/A 0.13 in N/A 0.39 in N/A 1/4-20

N/A 1.77 in N/A 1.38 in N/A 0.95 in N/A 0.13 in N/A 0.39 in N/A 0.250 in. Ream

N/A 1.77 in N/A 1.38 in N/A 0.95 in N/A 0.13 in N/A 0.39 in N/A 10-32

N/A 2.56 in N/A 1.77 in N/A 1.22 in N/A 0.24 in N/A 0.53 in N/A 1/4-20

N/A 2.56 in N/A 1.77 in N/A 1.22 in N/A 0.24 in N/A 0.53 in N/A 5/16-18

N/A 2.56 in N/A 1.77 in N/A 1.22 in N/A 0.24 in N/A 0.53 in N/A 0.250 in. Ream

N/A 2.56 in N/A 1.77 in N/A 1.22 in N/A 0.24 in N/A 0.53 in N/A 0.313 in. Ream

N/A 3.07 in N/A 2.12 in N/A 1.41 in N/A 0.29 in N/A 0.63 in N/A 5/16-18

N/A 3.07 in N/A 2.12 in N/A 1.41 in N/A 0.29 in N/A 0.63 in N/A 3/8-16

N/A 3.07 in N/A 2.12 in N/A 1.41 in N/A 0.29 in N/A 0.53 in N/A 0.313 in. Ream

N/A 3.07 in N/A 2.12 in N/A 1.41 in N/A 0.29 in N/A 0.53 in N/A 0.375 in. Ream

N/A 3.62 in N/A 2.52 in N/A 1.69 in N/A 0.35 in N/A 3/4 in N/A 3/8-16

N/A 3.62 in N/A 2.52 in N/A 1.69 in N/A 0.35 in N/A 3/4 in N/A 1/2-13

N/A 3.62 in N/A 2.52 in N/A 1.69 in N/A 0.35 in N/A 3/4 in N/A 0.375 in. Ream

N/A 3.62 in N/A 2.52 in N/A 1.69 in N/A 0.35 in N/A 3/4 in N/A 0.500 in. Ream

N/A 4.25 in N/A 2.95 in N/A 1.98 in N/A 0.47 in N/A 0.91 in N/A 1/2-13

N/A 4.25 in N/A 2.95 in N/A 1.98 in N/A 0.47 in N/A 0.91 in N/A 5/8-11

N/A 4.25 in N/A 2.95 in N/A 1.98 in N/A 0.47 in N/A 0.91 in N/A 0.500 in. Ream

N/A 4.25 in N/A 2.95 in N/A 1.98 in N/A 0.47 in N/A 0.91 in N/A 0.625 in. Ream
