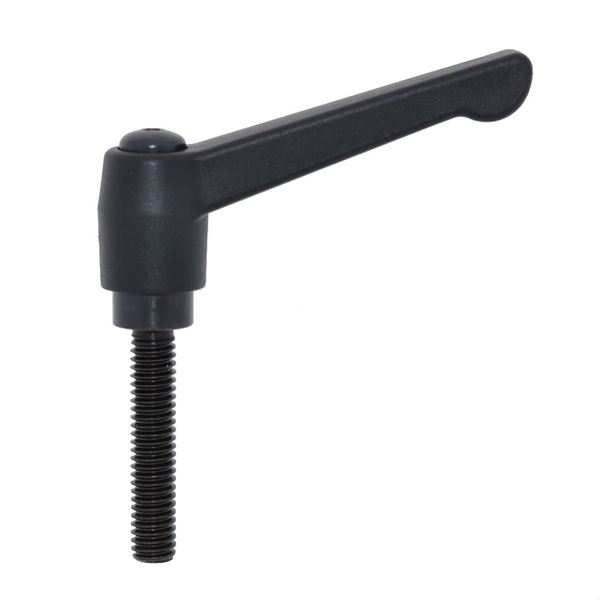

This classic style adjustable handle from JBF National is fashioned using Nylon 6 and is reinforced with a 30% glass fiber content mixture to enhance durability. This adjustable handle (also known as a clamping lever) features both premium black oxide coated steel components, and a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHS compliant. Inch and Metric versions available along with a variety of stud lengths.
1 - 95 of 95 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

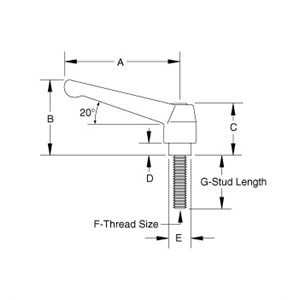

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Dimension E (mm)

F-Thread

G-Stud Length (mm)

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

F-Thread

G-Stud Length

Drawings

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 10 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 12 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 16 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 20 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 25 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M4 N/A 32 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 10 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 12 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 15 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 20 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 25 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 32 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 40 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M5 N/A 50 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 10 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 12 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 15 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 20 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 25 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 30 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 32 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 35 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 40 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 45 mm

N/A 45 mm N/A 35 mm N/A 25 mm N/A 4 mm N/A 10 mm N/A M6 N/A 50 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 12 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 16 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 20 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 25 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 32 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 40 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 50 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M6 N/A 63 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 12 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 15 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 20 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 25 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 30 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 32 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 35 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 40 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 45 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 50 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 60 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M8 N/A 63 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 15 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 20 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 25 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 30 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 35 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 40 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 45 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 50 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 60 mm

N/A 63 mm N/A 45 mm N/A 31 mm N/A 6.5 mm N/A 19.5 mm N/A M10 N/A 80 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 15 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 20 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 25 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 30 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 32 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 35 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 40 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 45 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 50 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 60 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 63 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M10 N/A 80 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 25 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 32 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 40 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 50 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 63 mm

N/A 78 mm N/A 55 mm N/A 36 mm N/A 8 mm N/A 22 mm N/A M12 N/A 80 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 20 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 25 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 30 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 32 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 35 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 40 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 45 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 50 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 60 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 63 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M10 N/A 80 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 20 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 25 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 30 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 32 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 35 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 40 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 45 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 50 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 60 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 63 mm

N/A 92 mm N/A 65 mm N/A 43 mm N/A 11 mm N/A 25.5 mm N/A M12 N/A 80 mm
