Power Take Off Pins
Assorted Pins

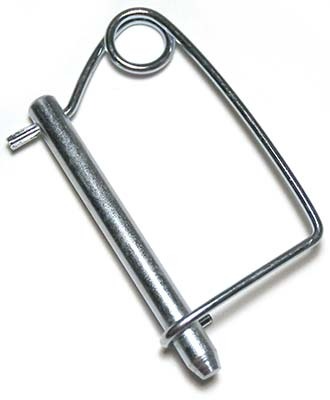

JBF National power take off pins are manufactured from the highest quality C1018 clear zinc plated steel, and are designed and tested for ultimate reliability and durability. These pins fit all PTO knuckles and most adapters, and are perfect for RV’s, tractors, and campers among other uses.
Item # |

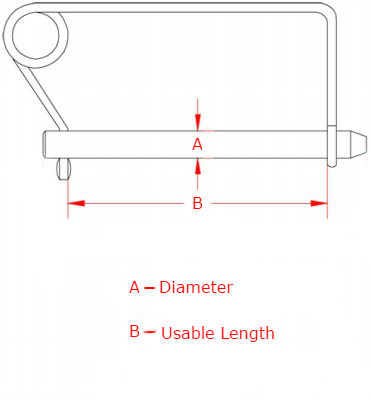

Pin Diameter (A) |
Usable Length |
Material |
Drawings |
|---|---|---|---|---|
| 1TOP-100 1TOP-100/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.25 in | Usable Length N/A 2 in | Material N/A C1018 Steel |
Drawings
 |
| 1TOP-101 1TOP-101/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.25 in | Usable Length N/A 3 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-102 1TOP-102/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.3125 in | Usable Length N/A 2-1/4 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-103 1TOP-103/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.3125 in | Usable Length N/A 3 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-104 1TOP-104/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.3125 in | Usable Length N/A 4 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-105 1TOP-105/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.375 in | Usable Length N/A 2-1/4 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-106 1TOP-106/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.375 in | Usable Length N/A 3 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-107 1TOP-107/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 0.375 in | Usable Length N/A 4 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-108 1TOP-108/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 7/16 in | Usable Length N/A 2-1/4 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-109 1TOP-109/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 7/16 in | Usable Length N/A 3 in | Material N/A C1018 Steel |
Drawings
|
| 1TOP-110 1TOP-110/Asset/Power-Take-Off-Pins.png | Pin Diameter (A) N/A 7/16 in | Usable Length N/A 4 in | Material N/A C1018 Steel |
Drawings
|
