HA-18012 Chest Handles with Neoprene Grip
Chest Handles

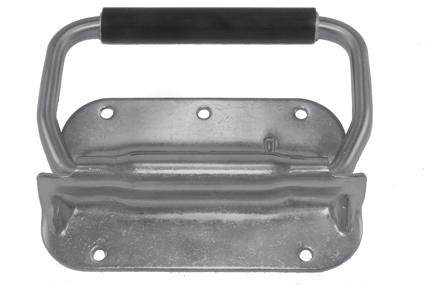

JBF National chest handles are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. HA -18012 features a 90 degree handle stop and a DFARS compliant return spring to keep the handle retracted when not in use. The handle grip is rated for temperatures between -52 to +150 Fahrenheit.
Item # |
Plate Material |
Bail Material |
Grip Diameter |

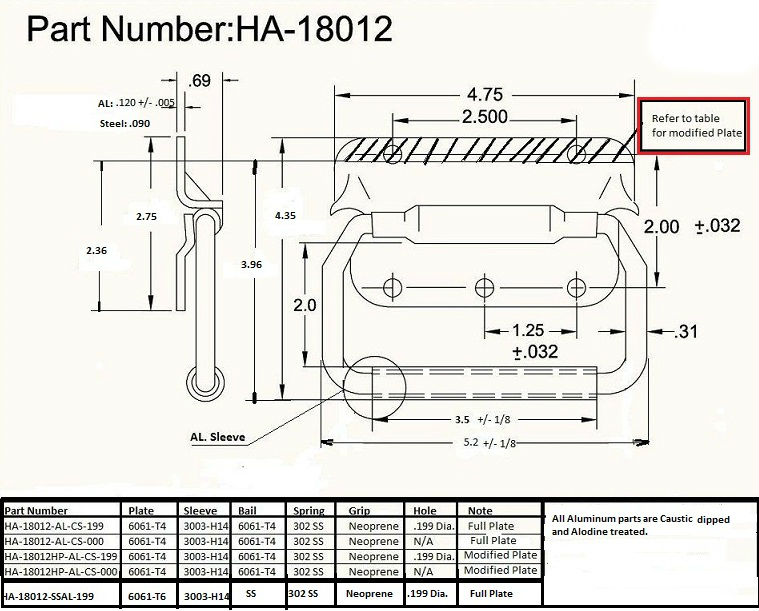

Drawings |
|---|---|---|---|---|
| HA-18012-AL-NF-199 HA-18012-AL-NF-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Aluminum | Bail Material N/A Aluminum | Grip Diameter N/A |
Drawings
![]() |
| HA-18012-AL-CS-199 HA-18012-AL-CS-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Aluminum | Bail Material N/A Aluminum | Grip Diameter N/A |
Drawings
![]() |
| HA-18012-STAL-000 HA-18012-STAL-000/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Aluminum | Bail Material N/A Steel/Cadmium | Grip Diameter N/A 0.560 in |
Drawings
![]() |
| HA-18012-SSAL-CS-199 HA-18012-SSAL-CS-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A AL6061 Caustic Dipped | Bail Material N/A Stainless Steel | Grip Diameter N/A 0.560 in |
Drawings
![]() |
| HA-18012-STST-CZ-199 HA-18012-STST-CZ-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Steel and Zinc Plated | Bail Material N/A Steel and Zinc Plated | Grip Diameter N/A 0.560 in |
Drawings
![]() |
| HA-18012LG-STST-CD-199 HA-18012LG-STST-CD-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Steel and Cadmium Plated | Bail Material N/A Steel and Cadmium Plated | Grip Diameter N/A 0.750 in |
Drawings
![]() |
| HA-18012-STAL-199 HA-18012-STAL-199/Asset/Chest-Handle-Spring-Loaded-1A-HA-18012_0.jpg | Plate Material N/A Aluminum | Bail Material N/A Steel | Grip Diameter N/A |
Drawings
![]() |
