Aluminum Crank Handles with Revolving Handle
Crank Handles

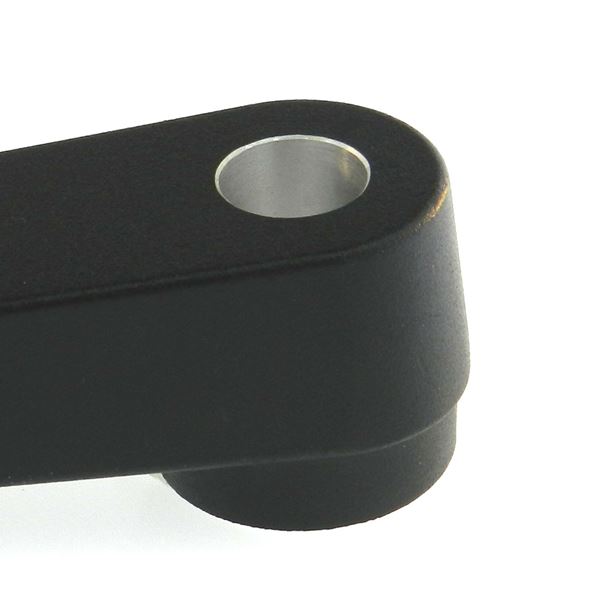

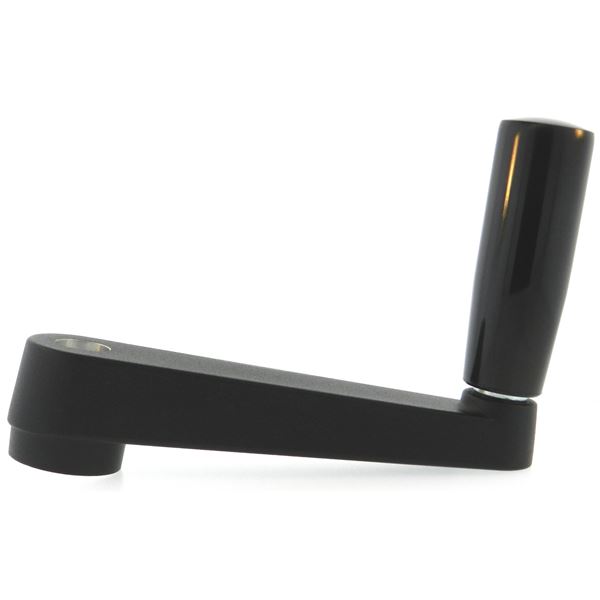

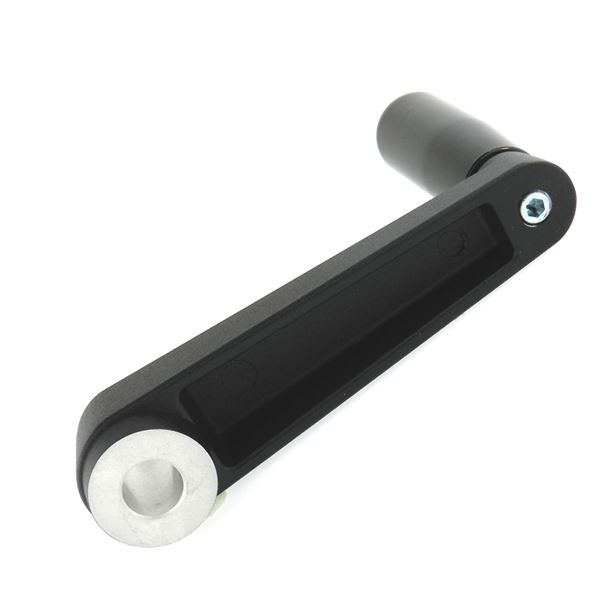

JBF National's aluminum crank handle is designed from the finest die cast aluminum alloy, and finished with a black powder coating. For increased safety, this model comes with a phenolic revolving handle to ensure maximum grip. For added customization, we offer these crank handles (also known as crank arms) with custom bore sizes, keyways, and set screws. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Bore Size (D) |
Crank Arm Material |
Drawings |
|---|---|---|---|---|---|---|
| 1AC-1008 1AC-1008/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.94 in | Dimension C N/A 1.97 in | Bore Size (D) N/A 5/16 in | Crank Arm Material N/A Aluminum |
Drawings
 |
| 1AC-1009 1AC-1009/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.94 in | Dimension C N/A 1.97 in | Bore Size (D) N/A 5/16 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 1AC-1010 1AC-1010/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.94 in | Dimension C N/A 1.97 in | Bore Size (D) N/A 3/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 1AC-1011 1AC-1011/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.94 in | Dimension C N/A 1.97 in | Bore Size (D) N/A 3/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 2AC-1012 2AC-1012/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.1 in | Dimension C N/A 2.56 in | Bore Size (D) N/A 3/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 2AC-1013 2AC-1013/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.1 in | Dimension C N/A 2.56 in | Bore Size (D) N/A 3/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 2AC-1014 2AC-1014/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.1 in | Dimension C N/A 2.56 in | Bore Size (D) N/A 1/2 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 2AC-1015 2AC-1015/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.1 in | Dimension C N/A 2.56 in | Bore Size (D) N/A 1/2 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 3AC-1016 3AC-1016/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 4.92 in | Dimension B N/A 1.34 in | Dimension C N/A 3.15 in | Bore Size (D) N/A 1/2 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 3AC-1017 3AC-1017/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 4.92 in | Dimension B N/A 1.34 in | Dimension C N/A 3.15 in | Bore Size (D) N/A 1/2 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 3AC-1018 3AC-1018/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 4.92 in | Dimension B N/A 1.34 in | Dimension C N/A 3.15 in | Bore Size (D) N/A 5/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
| 3AC-1019 3AC-1019/Asset/crank-handle-w-revolving-handle.jpg | Dimension A N/A 4.92 in | Dimension B N/A 1.34 in | Dimension C N/A 3.15 in | Bore Size (D) N/A 5/8 in | Crank Arm Material N/A Aluminum |
Drawings
|
