• Plastic Crank Handles
  • <!- Plastic Crank Handles Line Diagram->

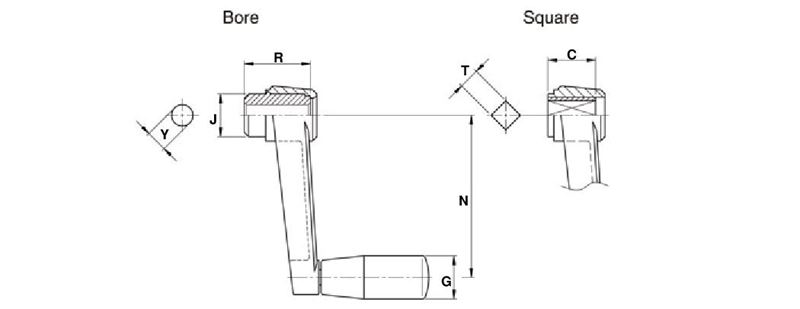

This plastic crank handle from JBF National is manufactured form the highest quality steel spindle with plastic handle and crank. This crank handle comes with either a round bore or square mounting hole. Please see component diagram below.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Dimension R

Dimension C

Drawings

N/A 50 mm N/A 6 mm N/A 6 mm N/A 16 mm N/A 14 mm N/A 28 mm N/A 18 mm

N/A 64 mm N/A 8 mm N/A 8 mm N/A 18 mm N/A 18 mm N/A 29 mm N/A 19 mm

N/A 80 mm N/A 10 mm N/A 10 mm N/A 22 mm N/A 21 mm N/A 32 mm N/A 22 mm

N/A 100 mm N/A 12 mm N/A 12 mm N/A 24 mm N/A 23 mm N/A 37 mm N/A 27 mm

N/A 130 mm N/A 14 mm N/A 14 mm N/A 28 mm N/A 26 mm N/A 44 mm N/A 30 mm

N/A 160 mm N/A 16 mm N/A 17 mm N/A 34 mm N/A 28 mm N/A 49 mm N/A 34 mm

N/A 50 mm N/A 6 mm N/A 6 mm N/A 16 mm N/A 14 mm N/A 28 mm N/A 18 mm

N/A 64 mm N/A 8 mm N/A 8 mm N/A 18 mm N/A 18 mm N/A 29 mm N/A 19 mm

N/A 80 mm N/A 10 mm N/A 10 mm N/A 22 mm N/A 21 mm N/A 32 mm N/A 22 mm

N/A 100 mm N/A 12 mm N/A 12 mm N/A 24 mm N/A 23 mm N/A 37 mm N/A 27 mm

N/A 130 mm N/A 14 mm N/A 14 mm N/A 28 mm N/A 26 mm N/A 44 mm N/A 30 mm

N/A 160 mm N/A 16 mm N/A 17 mm N/A 34 mm N/A 28 mm N/A 49 mm N/A 34 mm
