Plastic Crank Handles with Revolving Handle On JBF National

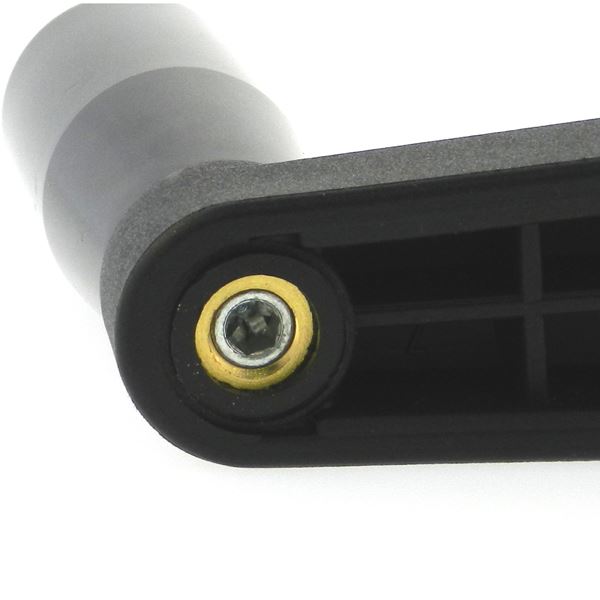

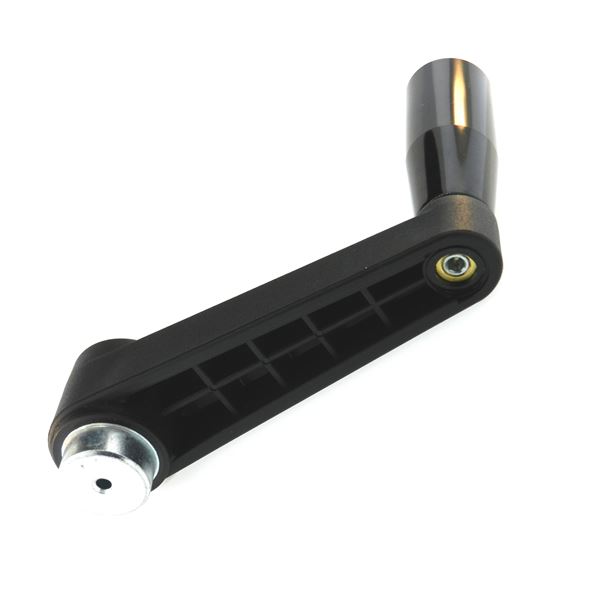

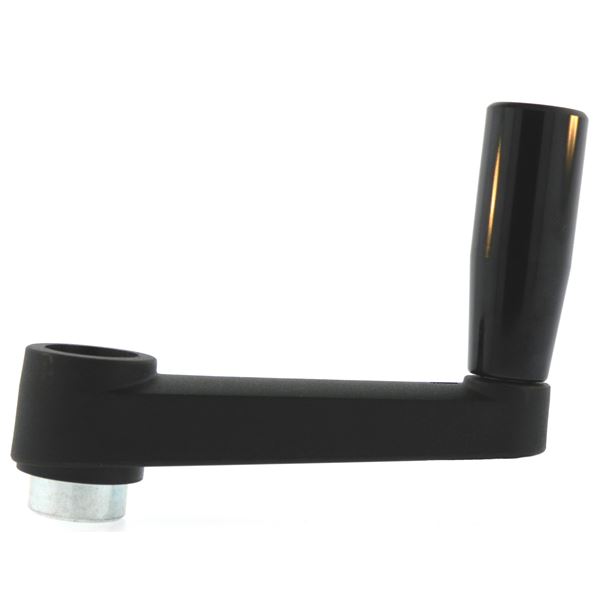

JBF National plastic crank handles are designed for weight reduction without sacrificing strength and durability. The plastic construction reduces the overall percentage of corrosive surface areas ensuring maximum longevity. For increased safety, this model comes with a phenolic revolving handle to ensure maximum grip. For added customization, we offer these crank handles (also known as crank arms) with a blind pilot hole to accommodate custom bore sizes. Please see component diagram below.

1 - 5 of 5 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Dimension A	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G	Dimension H

1HPC-1024	N/A 2.56 in	N/A 1.3 in	N/A 0.71 in	N/A 1.06 in	N/A 0.157 in	N/A 0.41 in	N/A 0.79 in	N/A 1.57 in
2HPC-1025	N/A 3.15 in	N/A 1.42 in	N/A 0.87 in	N/A 1.18 in	N/A 0.157 in	N/A 0.51 in	N/A 0.91 in	N/A 1.97 in
3HPC-1026	N/A 3.94 in	N/A 1.57 in	N/A 0.94 in	N/A 1.34 in	N/A 0.157 in	N/A 0.63 in	N/A 0.98 in	N/A 2.56 in
4HPC-1027	N/A 5.12 in	N/A 1.93 in	N/A 1.1 in	N/A 1.57 in	N/A 0.236 in	N/A 0.63 in	N/A 1.34 in	N/A 3.35 in
5HPC-1028	N/A 6.30 in	N/A 2.17 in	N/A 1.34 in	N/A 1.77 in	N/A 0.236 in	N/A 0.67 in	N/A 1.50 in	N/A 3.35 in
