• Steel Crank Handles

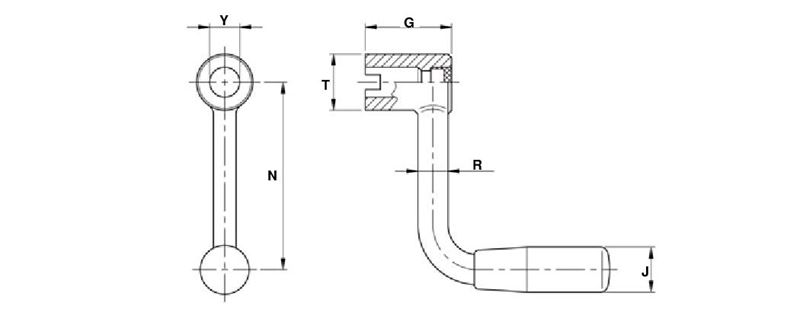

  • <!-Steel Crank Handles Line Drawing->
This crank handle from JBF National is made from the highest quality nickel plated steel and features a durable bakelite revolving handle. Please see component diagram below.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Dimension R

Drawings

N/A 63 mm N/A 10 mm N/A 18 mm N/A 18 mm N/A 28 mm N/A 8 mm

N/A 80 mm N/A 10 mm N/A 18 mm N/A 18 mm N/A 28 mm N/A 8 mm

N/A 100 mm N/A 12 mm N/A 20 mm N/A 21 mm N/A 30 mm N/A 8 mm

N/A 125 mm N/A 12 mm N/A 20 mm N/A 21 mm N/A 30 mm N/A 8 mm
