• Steel Tri-Ball Crank Handles

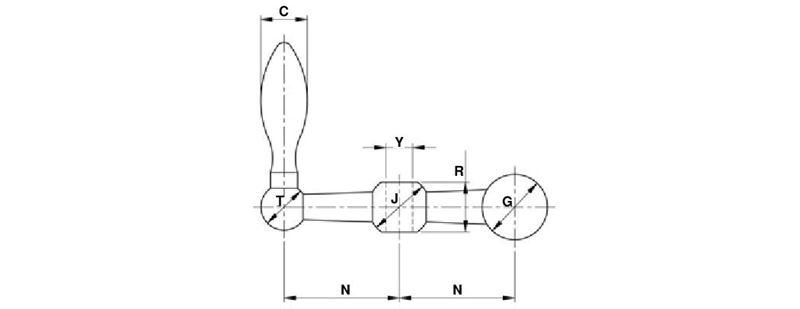

  • <!-Steel Tri-Ball Crank Handles Line Drawing->
This tri-ball crank handle from JBF National is manufactured from the highest quality matt silver finished steel, and has been designed and tested for ultimate reliability and durability. The tri-ball design provides appropriate counterbalance which allows for optimum control and the highest adjustment accuracy. Direct axle mount with various center hole bore sizes available. Please see component diagram below.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Dimension R

Dimension C

Drawings

N/A 25 mm N/A 7 mm N/A 13 mm N/A 16 mm N/A 18 mm N/A 13 mm N/A 10 mm
N/A 28 mm N/A 8 mm N/A 15 mm N/A 19 mm N/A 20 mm N/A 17 mm N/A 13 mm
N/A 34 mm N/A 8 mm N/A 16 mm N/A 20 mm N/A 22 mm N/A 17 mm N/A 14 mm
N/A 41 mm N/A 10 mm N/A 18 mm N/A 23 mm N/A 25 mm N/A 19.5 mm N/A 16 mm
N/A 50 mm N/A 12 mm N/A 20 mm N/A 26 mm N/A 28 mm N/A 21.5 mm N/A 18 mm
N/A 63 mm N/A 12 mm N/A 21 mm N/A 36 mm N/A 38 mm N/A 22 mm N/A 20 mm
N/A 80 mm N/A 15 mm N/A 25 mm N/A 35 mm N/A 38 mm N/A 25 mm N/A 25 mm
