Imperial Gear Lever Handles On JBF National

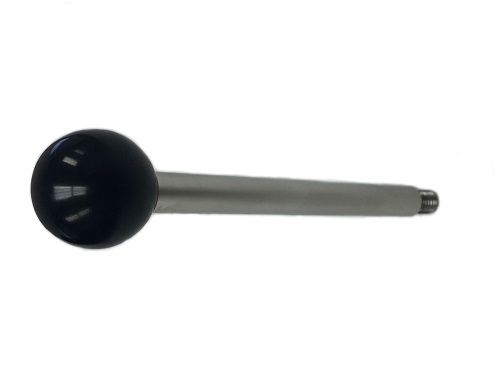

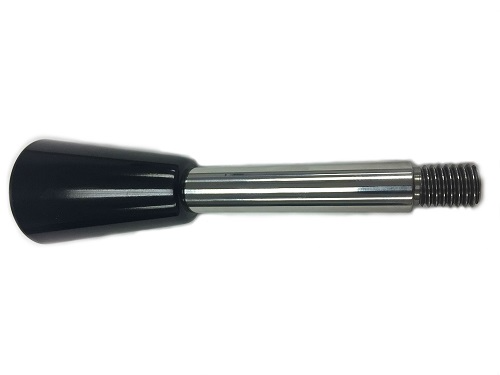

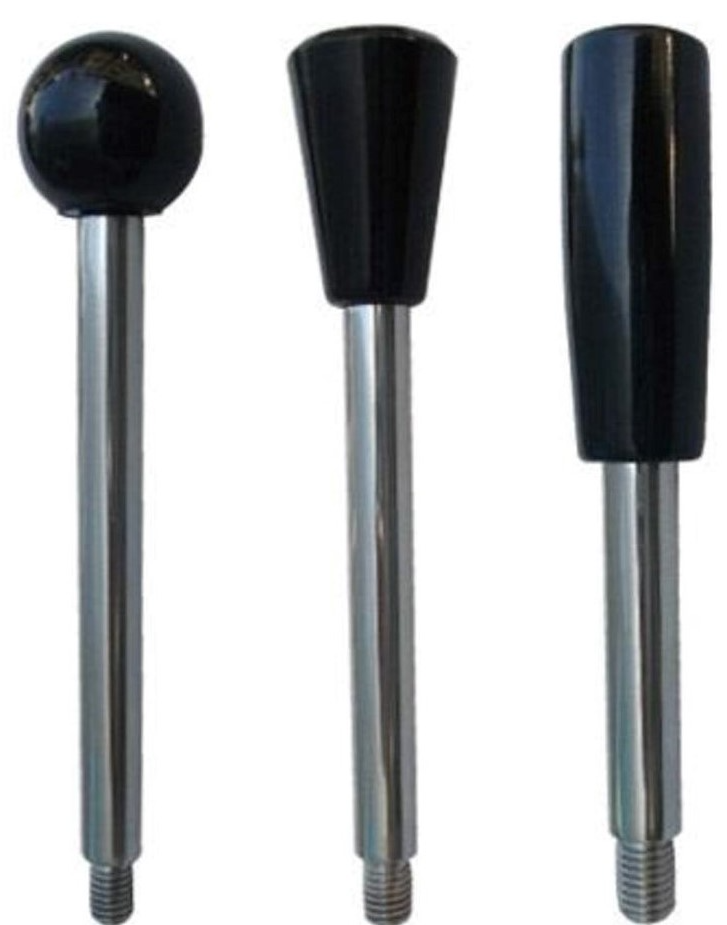

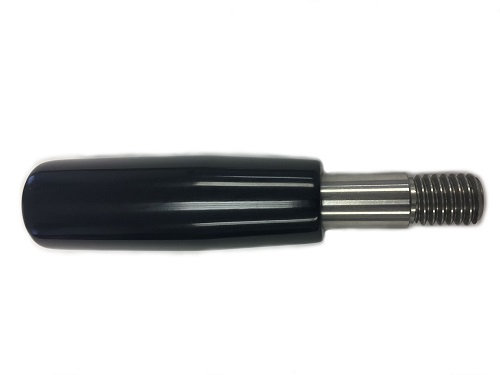

These gear lever handles from JBF National feature black duroplastic knobs and high quality stainless steel shafts for ultimate reliability and corrosion protection. Available handle styles include ball knob, tapered, and cylindrical handle ends. These handles are ideal for use as machinery control arms and can handle all clamping, pulling, revolving and cranking functions. Variety of thread lengths and sizes available.

1 - 45 of 45 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Thread Size (B)

Shaft Diameter (A2) (in)

Shaft Length (in)

Knob Diameter (A,C, or E) (in)

Knob Length (in)

Handle Length (H) (in)

Thread Length (G) (in)

Handle Styles

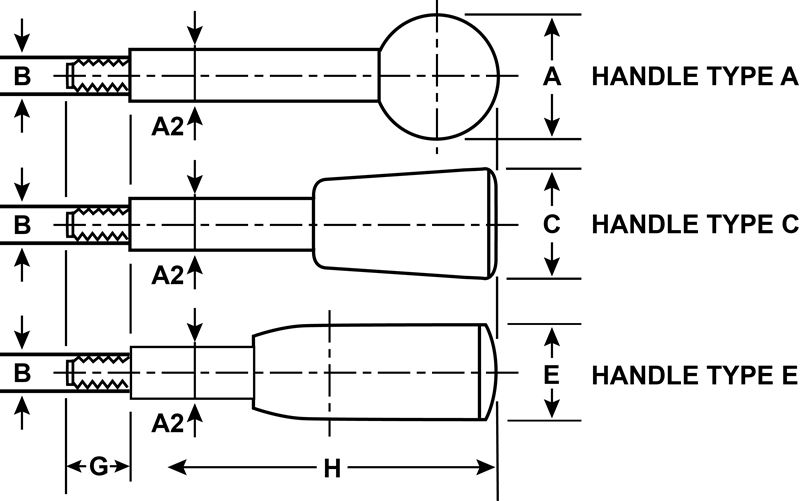

Item #	Thread Size (B)	Shaft Diameter (A2)	Shaft Length	Knob Diameter (A,C, or E)	Handle Length (H)	Thread Length (G)

GLH-500	N/A 1/4-20	N/A 1/4 in	N/A 1.38 in	N/A 0.78 in	N/A 2.08 in	N/A 0.35 in
GLH-501	N/A 1/4-20	N/A 1/4 in	N/A 1.97 in	N/A 0.78 in	N/A 2.68 in	N/A 0.35 in
GLH-502	N/A 1/4-20	N/A 1/4 in	N/A 2.56 in	N/A 0.78 in	N/A 3.27 in	N/A 0.35 in
GLH-503	N/A 5/16-18	N/A 5/16 in	N/A 3.94 in	N/A 0.98 in	N/A 4.80 in	N/A 0.43 in
GLH-504	N/A 5/16-18	N/A 5/16 in	N/A 2.00 in	N/A 0.98 in	N/A 2.85 in	N/A 0.43 in
GLH-505	N/A 5/16-18	N/A 5/16 in	N/A 2.56 in	N/A 0.98 in	N/A 3.40 in	N/A 0.43 in
GLH-506	N/A 5/16-18	N/A 5/16 in	N/A 3.20 in	N/A 0.98 in	N/A 4.04 in	N/A 0.43 in
GLH-507	N/A 3/8-16	N/A 3/8 in	N/A 3.94 in	N/A 1.26 in	N/A 5.08 in	N/A 0.55 in
GLH-508	N/A 3/8-16	N/A 3/8 in	N/A 4.92 in	N/A 1.26 in	N/A 6.06 in	N/A 0.55 in
GLH-509	N/A 3/8-16	N/A 3/8 in	N/A 2.56 in	N/A 1.26 in	N/A 3.70 in	N/A 0.55 in
GLH-510	N/A 3/8-16	N/A 3/8 in	N/A 3.15 in	N/A 1.26 in	N/A 4.29 in	N/A 0.55 in
GLH-511	N/A 1/2-13	N/A 1/2 in	N/A 3.94 in	N/A 1.38 in	N/A 5.20 in	N/A 0.63 in
GLH-512	N/A 1/2-13	N/A 1/2 in	N/A 4.92 in	N/A 1.38 in	N/A 6.20 in	N/A 0.63 in
GLH-513	N/A 1/2-13	N/A 1/2 in	N/A 6.30 in	N/A 1.38 in	N/A 7.58 in	N/A 0.63 in
GLH-514	N/A 1/2-13	N/A 1/2 in	N/A 3.15 in	N/A 1.38 in	N/A 4.43 in	N/A 0.63 in
GLH-530	N/A 1/4-20	N/A 1/4 in	N/A 1.38 in	N/A 0.78 in	N/A 2.56 in	N/A 0.35 in
GLH-531	N/A 1/4-20	N/A 1/4 in	N/A 1.97 in	N/A 0.78 in	N/A 3.15 in	N/A 0.35 in
GLH-532	N/A 1/4-20	N/A 1/4 in	N/A 2.56 in	N/A 0.78 in	N/A 3.74 in	N/A 0.35 in
GLH-533	N/A 5/16-18	N/A 5/16 in	N/A 3.94 in	N/A 0.98 in	N/A 5.43 in	N/A 0.51 in
GLH-534	N/A 5/16-18	N/A 1/4 in	N/A 1.97 in	N/A 0.98 in	N/A 3.46 in	N/A 0.51 in
GLH-535	N/A 5/16-18	N/A 5/16 in	N/A 2.56 in	N/A 0.98 in	N/A 1.50 in	N/A 0.51 in
GLH-536	N/A 5/16-18	N/A 5/16 in	N/A 3.15 in	N/A 0.98 in	N/A 4.65 in	N/A 0.51 in
GLH-537	N/A 3/8-16	N/A 3/8 in	N/A 3.94 in	N/A 1.18 in	N/A 5.75 in	N/A 0.59 in
GLH-538	N/A 3/8-16	N/A 3/8 in	N/A 4.92 in	N/A 1.18 in	N/A 6.73 in	N/A 0.59 in
GLH-539	N/A 3/8-16	N/A 3/8 in	N/A 2.56 in	N/A 1.18 in	N/A 4.37 in	N/A 0.59 in
GLH-540	N/A 3/8-16	N/A 3/8 in	N/A 3.15 in	N/A 1.18 in	N/A 5.75 in	N/A 0.59 in
GLH-541	N/A 1/2-13	N/A 1/2 in	N/A 3.94 in	N/A 1.38 in	N/A 6.02 in	N/A 0.63 in
GLH-542	N/A 1/2-13	N/A 1/2 in	N/A 4.92 in	N/A 1.38 in	N/A 7.00 in	N/A 0.63 in
GLH-543	N/A 1/2-13	N/A 1/2 in	N/A 6.30 in	N/A 1.38 in	N/A 8.39 in	N/A 0.63 in
GLH-544	N/A 1/2-13	N/A 1/2 in	N/A 3.15 in	N/A 1.38 in	N/A 5.24 in	N/A 0.63 in
GLH-560	N/A 1/4-20	N/A 1/4 in	N/A 1.38 in	N/A 0.71 in	N/A 3.15 in	N/A 0.35 in
GLH-561	N/A 1/4-20	N/A 1/4 in	N/A 1.97 in	N/A 0.71 in	N/A 3.74 in	N/A 0.35 in
GLH-562	N/A 1/4-20	N/A 1/4 in	N/A 2.56 in	N/A 0.71 in	N/A 4.33 in	N/A 0.35 in
GLH-563	N/A 5/16-18	N/A 5/16 in	N/A 3.94 in	N/A 0.83 in	N/A 6.30 in	N/A 0.43 in
GLH-564	N/A 5/16-18	N/A 5/16 in	N/A 1.97 in	N/A 0.83 in	N/A 4.33 in	N/A 0.43 in
GLH-565	N/A 5/16-18	N/A 5/16 in	N/A 2.56 in	N/A 0.83 in	N/A 4.92 in	N/A 0.43 in
GLH-566	N/A 5/16-18	N/A 5/16 in	N/A 3.15 in	N/A 0.83 in	N/A 5.51 in	N/A 0.43 in
GLH-567	N/A 3/8-16	N/A 3/8 in	N/A 3.94 in	N/A 0.91 in	N/A 6.70 in	N/A 0.55 in
GLH-568	N/A 3/8-16	N/A 3/8 in	N/A 4.92 in	N/A 0.91 in	N/A 7.68 in	N/A 0.55 in
GLH-569	N/A 3/8-16	N/A 3/8 in	N/A 2.56 in	N/A 0.91 in	N/A 5.31 in	N/A 0.55 in
GLH-570	N/A 3/8-16	N/A 3/8 in	N/A 3.15 in	N/A 0.91 in	N/A 5.91 in	N/A 0.55 in
GLH-571	N/A 1/2-13	N/A 1/2 in	N/A 3.94 in	N/A 1.02 in	N/A 6.70 in	N/A 0.63 in
GLH-572	N/A 1/2-13	N/A 1/2 in	N/A 4.92 in	N/A 1.02 in	N/A 7.68 in	N/A 0.63 in
GLH-573	N/A 1/2-13	N/A 1/2 in	N/A 6.30 in	N/A 1.02 in	N/A 9.06 in	N/A 0.63 in
GLH-574	N/A 1/2-13	N/A 1/2 in	N/A 3.15 in	N/A 1.02 in	N/A 5.91 in	N/A 0.63 in
