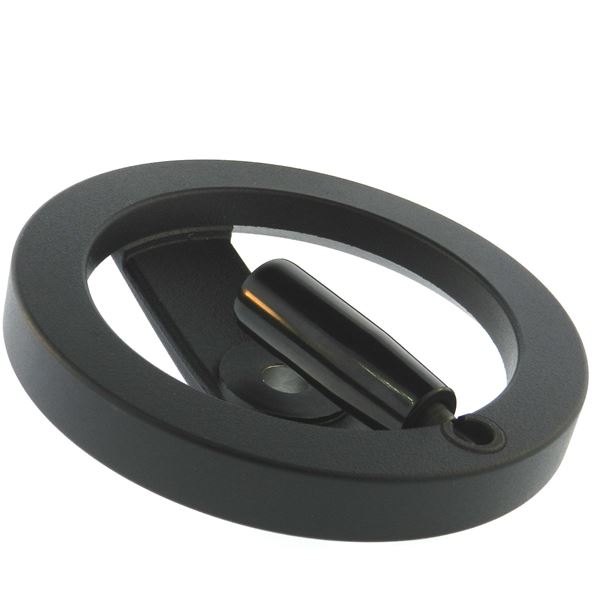

• 2 Spoke Aluminum Handwheels with Folding Handle

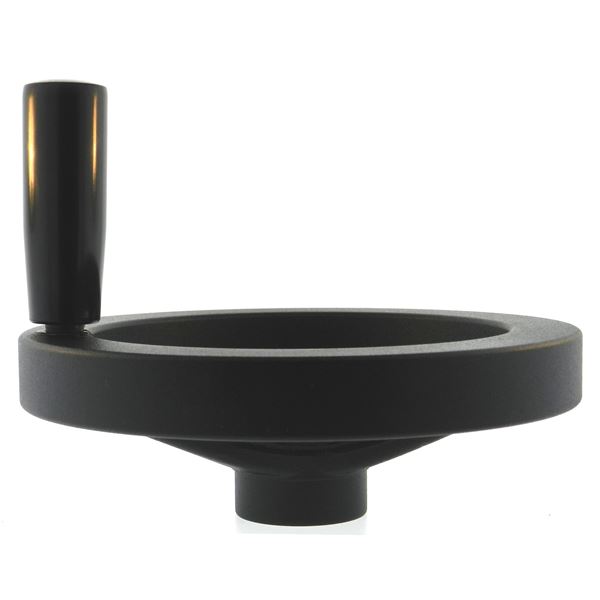

  • 2 Spoke Aluminum Handwheels with Folding Handle - 3

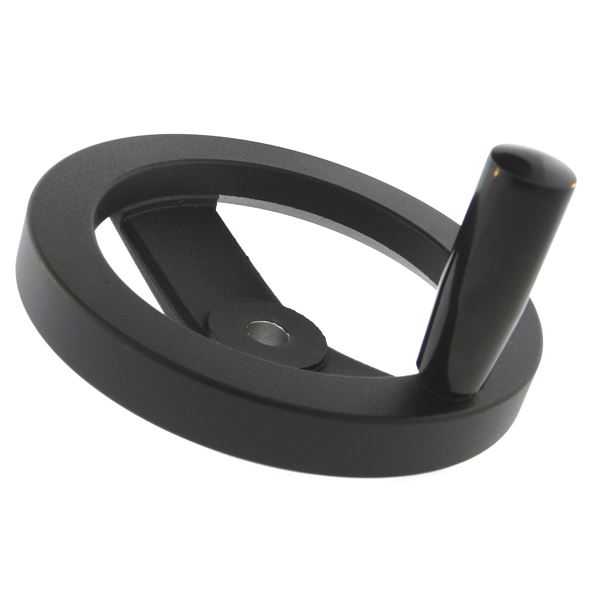

  • 2 Spoke Aluminum Handwheels with Folding Handle - 4

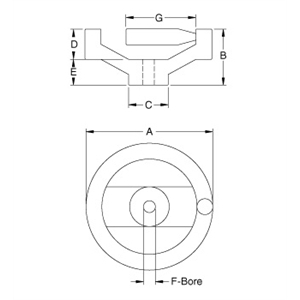

  • <!-2 Spoke Aluminum Handwheels with Folding Handle Line Drawing->
JBF National fashions this 2 spoke aluminum handwheel from the highest quality gravity cast aluminum, which features a fine grain black powder coating. To maximize operator comfort and safety, this handwheel comes with a smooth phenolic, folding handle. The folding handle makes it excellent for tight space situations. Various diameters and bore sizes available. Please see component diagram below.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

Dimension F

Dimension G

Drawings

N/A 4 in N/A 1.77 in N/A 1.25 in N/A 0.750 in N/A 0.812 in N/A 3/8 in N/A 1.97 in

N/A 4 in N/A 1.77 in N/A 1.25 in N/A 0.750 in N/A 0.812 in N/A 1/2 in N/A 1.97 in

N/A 5 in N/A 1.93 in N/A 1.31 in N/A 0.750 in N/A 0.875 in N/A 3/8 in N/A 2.56 in

N/A 5 in N/A 1.93 in N/A 1.31 in N/A 0.750 in N/A 0.875 in N/A 1/2 in N/A 2.56 in

N/A 6 in N/A 2.05 in N/A 1.44 in N/A 0.780 in N/A 1 in N/A 1/2 in N/A 2.56 in

N/A 6 in N/A 2.05 in N/A 1.44 in N/A 0.780 in N/A 1 in N/A 5/8 in N/A 2.56 in

N/A 8 in N/A 2.74 in N/A 1.94 in N/A 0.937 in N/A 1.370 in N/A 1/2 in N/A 3.15 in

N/A 8 in N/A 2.74 in N/A 1.94 in N/A 0.937 in N/A 1.370 in N/A 5/8 in N/A 3.15 in

N/A 10 in N/A 2.80 in N/A 1.94 in N/A 0.937 in N/A 1.370 in N/A 5/8 in N/A 3.15 in

N/A 10 in N/A 2.80 in N/A 1.94 in N/A 0.937 in N/A 1.370 in N/A 3/4 in N/A 3.15 in
