2 Spoke Chrome Plated Finish Aluminum Handwheels On JBF National

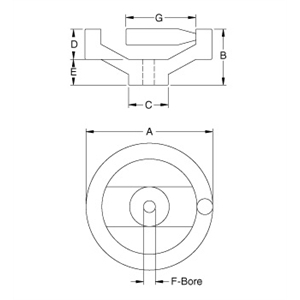

JBF National fashions this 2 spoke aluminum handwheel from the finest chrome finished gravity cast aluminum, and comes with either a fixed phenolic revolving or folding handle. This handwheel is also available in 4" and 6" diameters. A rigorous 400 hour salt spray test rating means that it will stand the test of time in any situation. Please see component diagram below.

1 - 8 of 8 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Dimension A	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G

1AHDW-1000	N/A 4 in	N/A 1.77 in	N/A 1.25 in	N/A 0.750 in	N/A 0.812 in	N/A 3/8 in	N/A 1.97 in
1AHDW-1001	N/A 4 in	N/A 1.77 in	N/A 1.25 in	N/A 0.750 in	N/A 0.812 in	N/A 1/2 in	N/A 1.97 in
3AHDW-1002	N/A 6 in	N/A 2.05 in	N/A 1.44 in	N/A 0.780 in	N/A 1 in	N/A 1/2 in	N/A 2.56 in
3AHDW-1003	N/A 6 in	N/A 2.05 in	N/A 1.44 in	N/A 0.780 in	N/A 1 in	N/A 5/8 in	N/A 2.56 in
1AHDW-1004	N/A 4 in	N/A 1.77 in	N/A 1.25 in	N/A 0.750 in	N/A 0.812 in	N/A 3/8 in	N/A 1.97 in
1AHDW-1005	N/A 4 in	N/A 1.77 in	N/A 1.25 in	N/A 0.750 in	N/A 0.812 in	N/A 1/2 in	N/A 1.97 in
3AHDW-1006	N/A 6 in	N/A 2.05 in	N/A 1.44 in	N/A 0.780 in	N/A 1 in	N/A 1/2 in	N/A 2.56 in
3AHDW-1007	N/A 6 in	N/A 2.05 in	N/A 1.44 in	N/A 0.780 in	N/A 1 in	N/A 5/8 in	N/A 2.56 in

1 - 8 of 8 | Results Per Page | View | Unit of Measure
