3 Spoke Plastic Handwheels
Handwheels

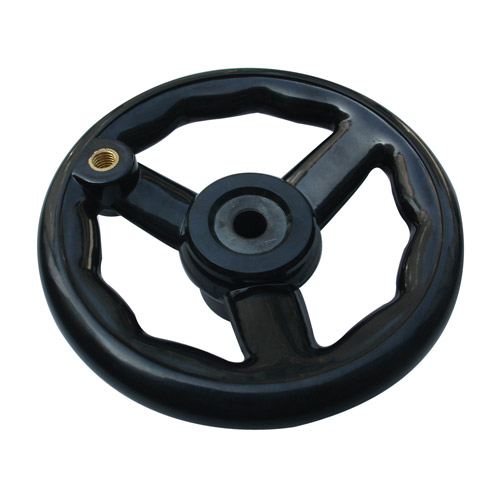

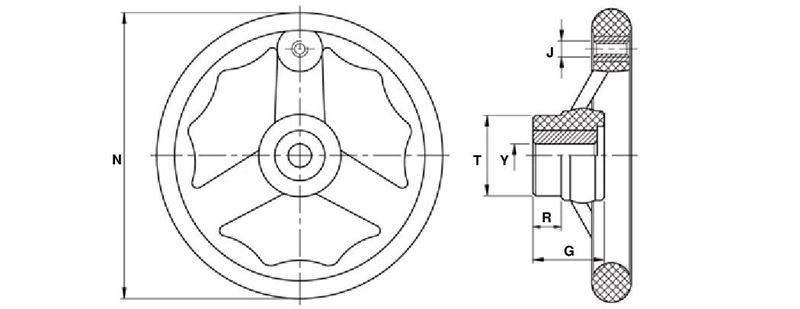

This plastic three spoke handwheel from JBF National is manufactured from the highest quality bakelite material and has been designed and tested for ultimate reliability and durability. The inside handwheel rim is specially designed for optimum handgrip and ultimate comfort. Handwheel features an M10 threading for optional revolving handle attachment. Please see component diagram below.
Item # |
Dimension N |
Dimension Y |
Dimension T |
Dimension G |
Dimension R |
Drawings |
|---|---|---|---|---|---|---|
| 1HW-122 1HW-122/Asset/Plastic-Handwheel-3-Spoke-001-1A-.jpg | Dimension N N/A 160 mm | Dimension Y N/A B12.7 | Dimension T N/A 45 mm | Dimension G N/A 44 mm | Dimension R N/A 17 mm |
Drawings
![]() |
| 1HW-123 1HW-123/Asset/Plastic-Handwheel-3-Spoke-001-1A-.jpg | Dimension N N/A 200 mm | Dimension Y N/A B12.7 | Dimension T N/A 51 mm | Dimension G N/A 44 mm | Dimension R N/A 17 mm |
Drawings
![]() |
| 1HW-124 1HW-124/Asset/Plastic-Handwheel-3-Spoke-001-1A-.jpg | Dimension N N/A 250 mm | Dimension Y N/A B12.7 | Dimension T N/A 63 mm | Dimension G N/A 65 mm | Dimension R N/A 34 mm |
Drawings
![]() |
