Aluminum Dished Handwheels with Revolving Handle On JBF National

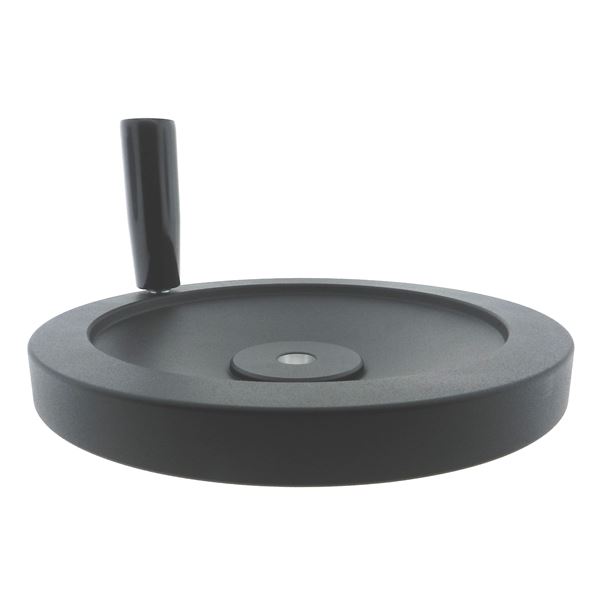

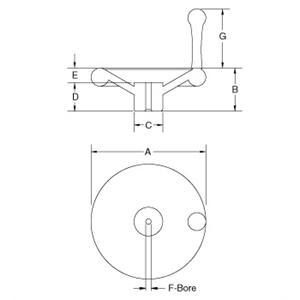

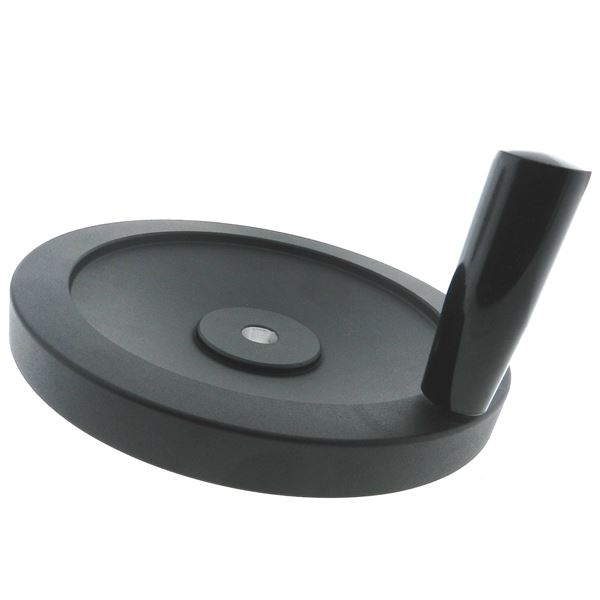

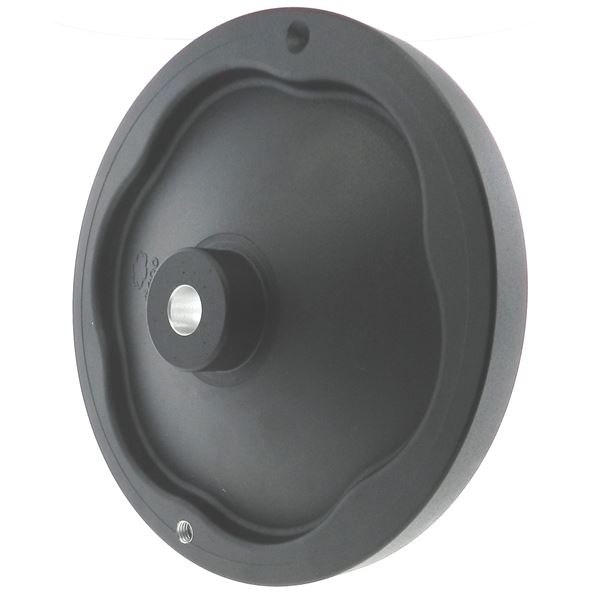

Fashioned from the highest quality aluminum, this dished handwheel from JBF National comes finished in a fine grain black powder coating. This handwheel features a smooth phenolic handle to make quick and precise adjustments a breeze. Various diameters and bore sizes available. Please see component diagram below.

1 - 8 of 8 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Dimension A	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G

1ADHDW-1038	N/A 3.15 in	N/A 1.14 in	N/A 1.02 in	N/A 0.63 in	N/A 0.51 in	N/A 3/8 in	N/A 1.57 in
1ADHDW-1039	N/A 3.15 in	N/A 1.14 in	N/A 1.02 in	N/A 0.63 in	N/A 0.51 in	N/A 1/2 in	N/A 1.57 in
2ADHDW-1040	N/A 3.94 in	N/A 1.18 in	N/A 1.10 in	N/A 0.67 in	N/A 0.55 in	N/A 3/8 in	N/A 1.97 in
2ADHDW-1041	N/A 3.94 in	N/A 1.18 in	N/A 1.10 in	N/A 0.67 in	N/A 0.55 in	N/A 1/2 in	N/A 1.97 in
3ADHDW-1042	N/A 7.87 in	N/A 1.77 in	N/A 1.65 in	N/A 0.94 in	N/A 0.81 in	N/A 5/8 in	N/A 3.15 in
3ADHDW-1043	N/A 7.87 in	N/A 1.77 in	N/A 1.65 in	N/A 0.94 in	N/A 0.81 in	N/A 3/4 in	N/A 3.15 in
4ADHDW-1044	N/A 9.84 in	N/A 2.01 in	N/A 1.89 in	N/A 1.10 in	N/A 0.91 in	N/A 3/4 in	N/A 3.15 in
4ADHDW-1045	N/A 9.84 in	N/A 2.01 in	N/A 1.89 in	N/A 1.10 in	N/A 0.91 in	N/A 7/8 in	N/A 3.15 in
