• Aluminum Handwheels with No Handle

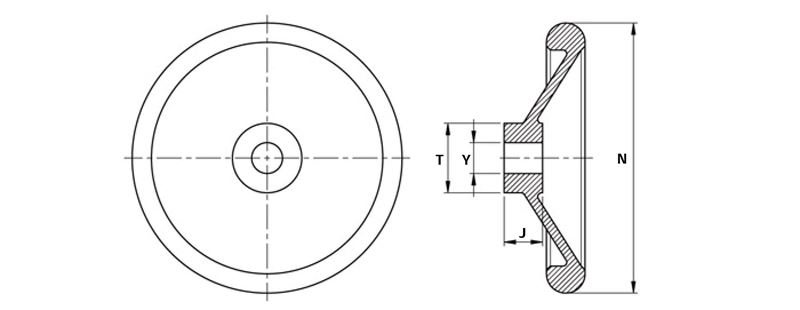

  • <!-Aluminum Handwheels with No Handle Line Drawing->

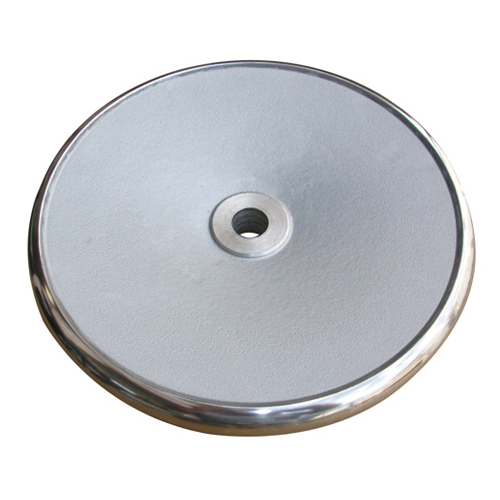

This handle-less handwheel from JBF National is made from the highest quality aluminum and has been designed and tested for ultimate reliability and durability. This handwheel features a plain aluminum center disc, a polished outer rim, and a handle-less design that allows for space saving maximization. Various diameters and bore sizes available. Please see component diagram below.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Drawings

N/A 80 mm N/A B10 N/A 26 mm N/A 16 mm

N/A 100 mm N/A B10 N/A 28 mm N/A 17 mm

N/A 125 mm N/A B10 N/A 31 mm N/A 18 mm

N/A 160 mm N/A B10 N/A 36 mm N/A 20 mm

N/A 200 mm N/A B10 N/A 42 mm N/A 24 mm

N/A 250 mm N/A B10 N/A 48 mm N/A 28 mm

N/A 315 mm N/A B10 N/A 56 mm N/A 33 mm

N/A 400 mm N/A B10 N/A 65 mm N/A 38 mm
