Euro Style Nylon Handwheels with Folding Handle
Handwheels

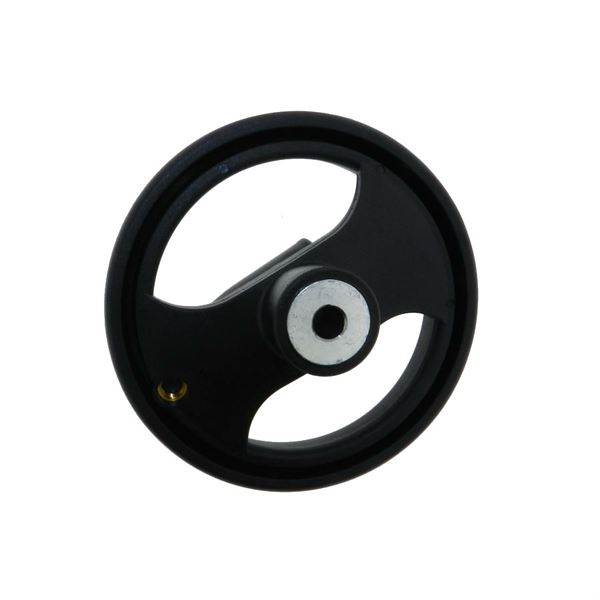

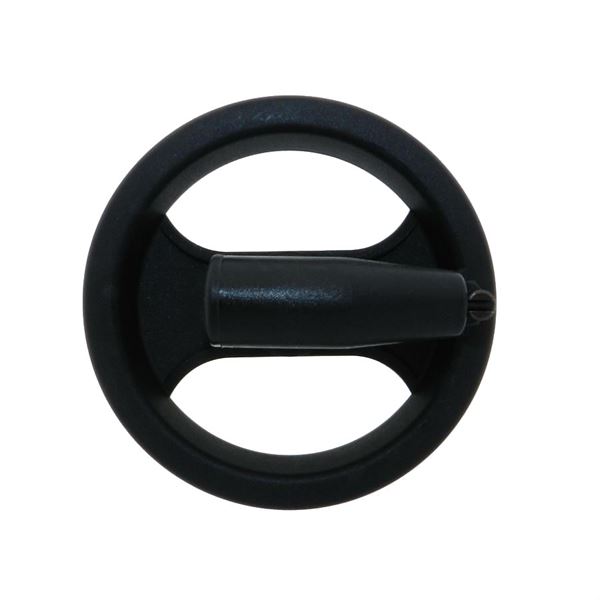

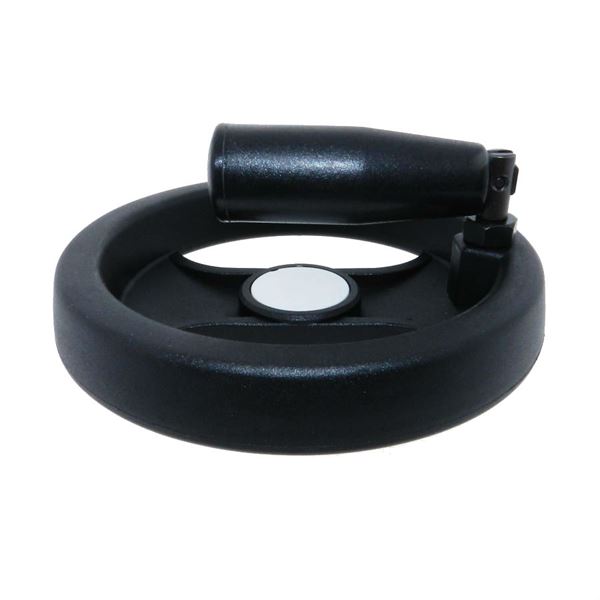

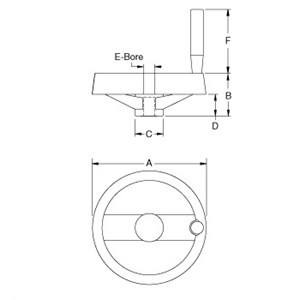

This Euro style handwheel from JBF National comes manufactured from ultra-tough nylon with a matte black finish, and is strong enough for just about any application. Due to its nylon construction, this handwheel is heat resistant up to 300 degrees Fahrenheit. It also comes equipped with the space saving and safety feature of a folding euro style handle. Customizable set screws, keyways, and bore sizes available upon request. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Drawings |
|---|---|---|---|---|---|---|---|
| 1ESHW-1082 1ESHW-1082/Asset/Nylon-Handwheel-Euro-Style--with-Folding-Handle-001A-.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.65 in | Dimension C N/A 1.1 in | Dimension D N/A 1.02 in | Dimension E N/A 3/8 in | Dimension F N/A 2.2 in |
Drawings
 |
| 2ESHW-1083 2ESHW-1083/Asset/Nylon-Handwheel-Euro-Style--with-Folding-Handle-001A-.jpg | Dimension A N/A 5.12 in | Dimension B N/A 1.97 in | Dimension C N/A 1.26 in | Dimension D N/A 1.18 in | Dimension E N/A 3/8 in | Dimension F N/A 2.99 in |
Drawings
|
| 3ESHW-1084 3ESHW-1084/Asset/Nylon-Handwheel-Euro-Style--with-Folding-Handle-001A-.jpg | Dimension A N/A 6.46 in | Dimension B N/A 2.2 in | Dimension C N/A 1.58 in | Dimension D N/A 1.25 in | Dimension E N/A 1/2 in | Dimension F N/A 2.99 in |
Drawings
|
| 4ESHW-1085 4ESHW-1085/Asset/Nylon-Handwheel-Euro-Style--with-Folding-Handle-001A-.jpg | Dimension A N/A 7.88 in | Dimension B N/A 2.4 in | Dimension C N/A 1.97 in | Dimension D N/A 1.3 in | Dimension E N/A 5/8 in | Dimension F N/A 2.99 in |
Drawings
|
| 5ESHW-1086 5ESHW-1086/Asset/Nylon-Handwheel-Euro-Style--with-Folding-Handle-001A-.jpg | Dimension A N/A 10.04 in | Dimension B N/A 2.8 in | Dimension C N/A 2.2 in | Dimension D N/A 1.54 in | Dimension E N/A 5/8 in | Dimension F N/A 3.85 in |
Drawings
|
