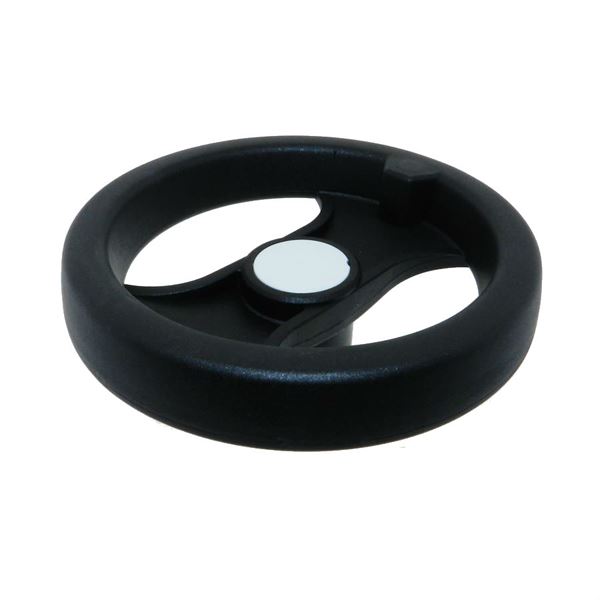

• Euro Style Nylon Handwheels with No Handle

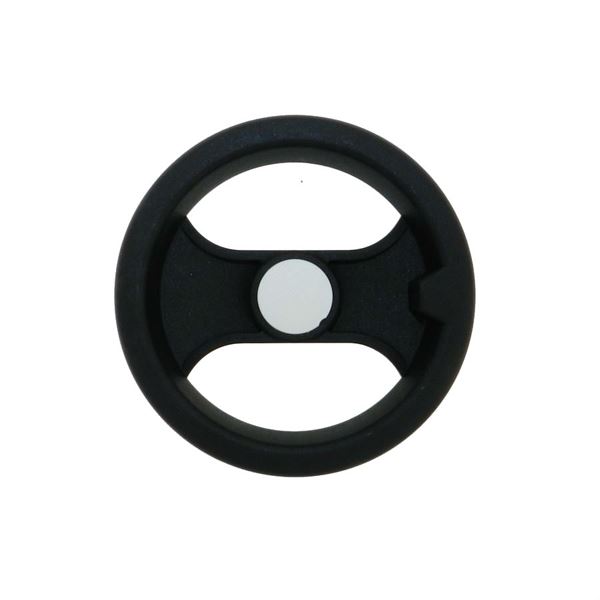

  • Euro Style Nylon Handwheels with No Handle - 3

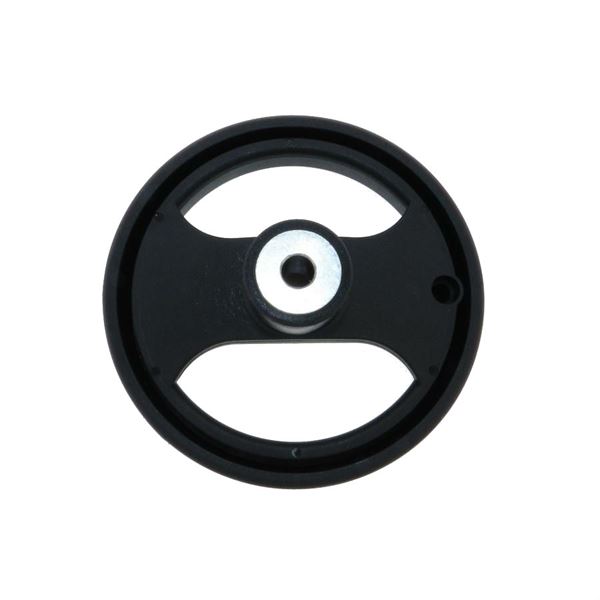

  • Euro Style Nylon Handwheels with No Handle -4

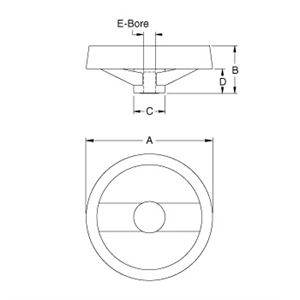

  • <!-Euro Style Nylon Handwheels with No Handle Line Drawing->
This Euro style handwheel from JBF National which comes manufactured from ultra-tough nylon with a matte black finish, is strong enough for just about any application. Due to its nylon construction, this handwheel is heat resistant up to 300 degrees Fahrenheit. The handle-less design allows for space saving maximization and through center hand grip to make minute adjustments a cinch. Please see component diagram below.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Bore Size (E)

Drawings

N/A 3.15 in N/A 1.34 in N/A 0.95 in N/A 0.79 in N/A 0.313 in

N/A 3.94 in N/A 1.65 in N/A 1.1 in N/A 1.02 in N/A 0.375 in

N/A 5.12 in N/A 1.97 in N/A 1.26 in N/A 1.18 in N/A 0.375 in

N/A 6.46 in N/A 2.2 in N/A 1.58 in N/A 1.25 in N/A 0.5 in

N/A 7.88 in N/A 2.4 in N/A 1.97 in N/A 1.30 in N/A 0.625 in

N/A 10.04 in N/A 2.8 in N/A 2.20 in N/A 1.54 in N/A 0.625 in
