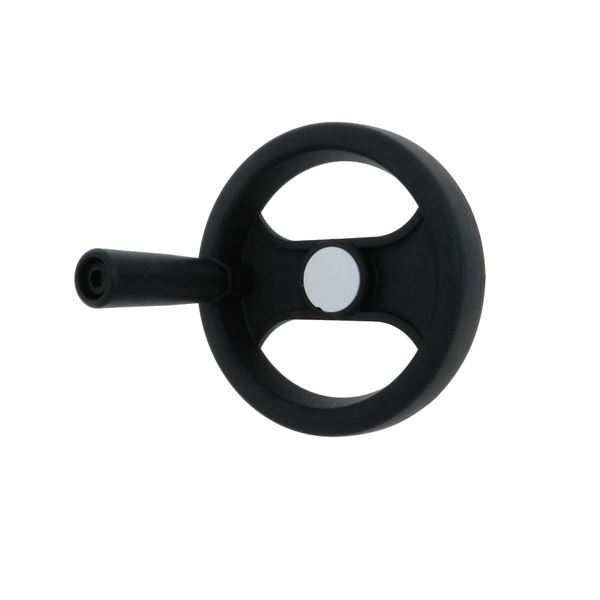

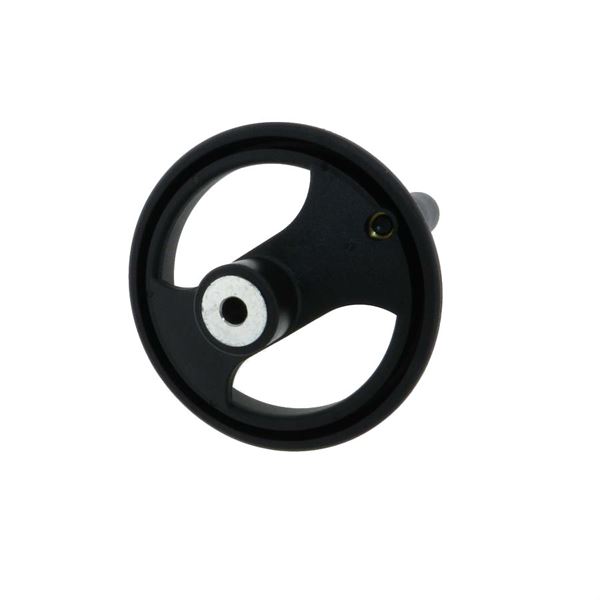

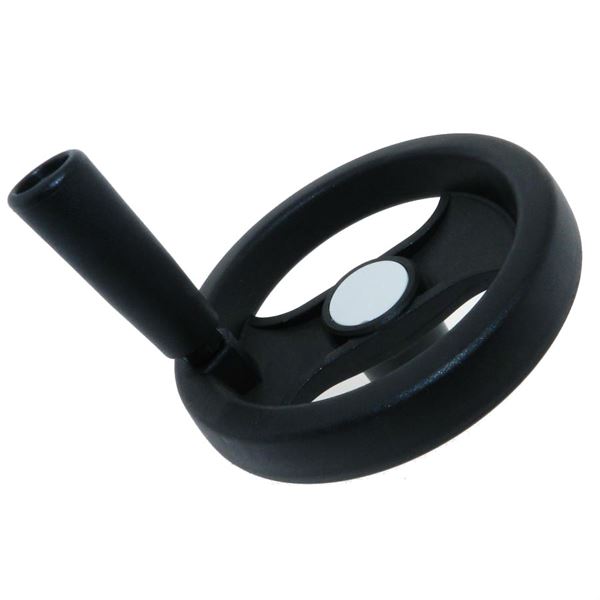

Euro Style Nylon Handwheels with Revolving Handle
Handwheels

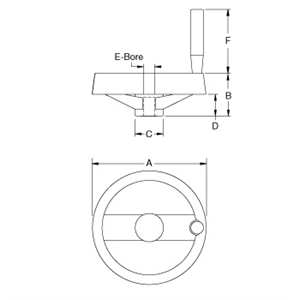

This Euro style handwheel from JBF National which comes manufactured from ultra-tough nylon with a matte black finish, is strong enough for just about any application. Due to its nylon construction, this handwheel is heat resistant up to 300 degrees Fahrenheit. To ensure that the continuous rotating action of the wheel provides the operator with the highest level of grip comfort, it comes with a high quality phenolic revolving handle. Customizable set screws, keyways, and bore sizes available upon request. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Drawings |
|---|---|---|---|---|---|---|---|
| 1ESHW-1087 1ESHW-1087/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 3.15 in | Dimension B N/A 1.34 in | Dimension C N/A 0.95 in | Dimension D N/A 0.79 in | Dimension E N/A 0.313 in | Dimension F N/A 2.2 in |
Drawings
![]() |
| 2ESHW-1088 2ESHW-1088/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.65 in | Dimension C N/A 1.1 in | Dimension D N/A 1.02 in | Dimension E N/A 3/8 in | Dimension F N/A 2.2 in |
Drawings
![]() |
| 3ESHW-1089 3ESHW-1089/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 5.12 in | Dimension B N/A 1.97 in | Dimension C N/A 1.26 in | Dimension D N/A 1.18 in | Dimension E N/A 3/8 in | Dimension F N/A 2.6 in |
Drawings
![]() |
| 4ESHW-1090 4ESHW-1090/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 6.46 in | Dimension B N/A 2.2 in | Dimension C N/A 1.58 in | Dimension D N/A 1.25 in | Dimension E N/A 1/2 in | Dimension F N/A 2.99 in |
Drawings
![]() |
| 5ESHW-1091 5ESHW-1091/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 7.88 in | Dimension B N/A 2.4 in | Dimension C N/A 2.2 in | Dimension D N/A 1.54 in | Dimension E N/A 5/8 in | Dimension F N/A 2.99 in |
Drawings
![]() |
| 6ESHW-1092 6ESHW-1092/Asset/Nylon-Euro-Style-Handwheel-Rev--Handle-1A-01-.jpg | Dimension A N/A 10.04 in | Dimension B N/A 2.8 in | Dimension C N/A 2.2 in | Dimension D N/A 1.54 in | Dimension E N/A 5/8 in | Dimension F N/A 3.62 in |
Drawings
![]() |
