Finished Straight Handwheels with No Handle On JBF National

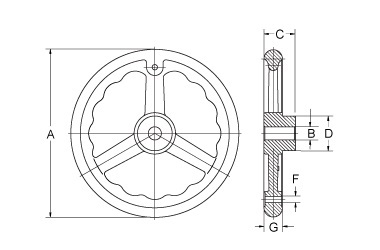

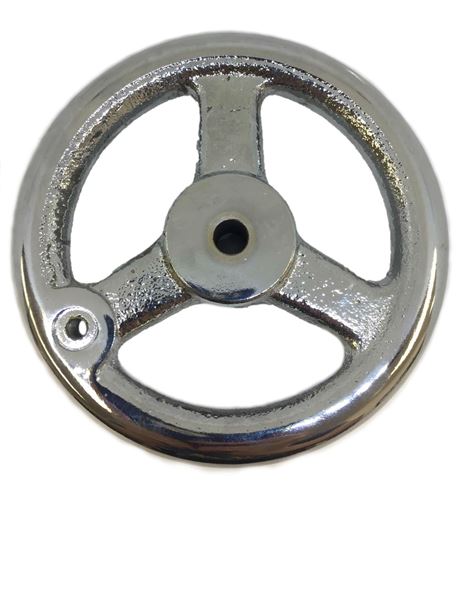

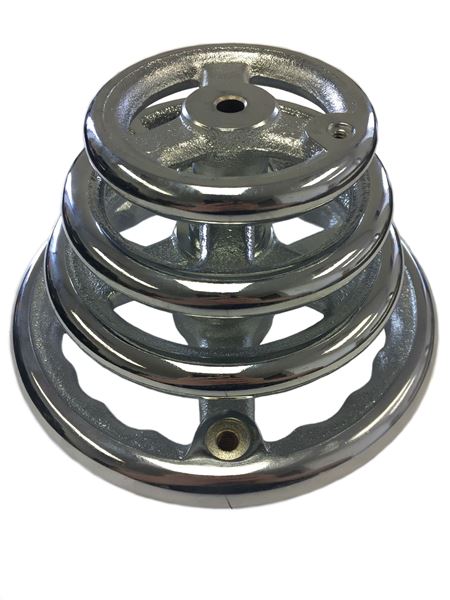

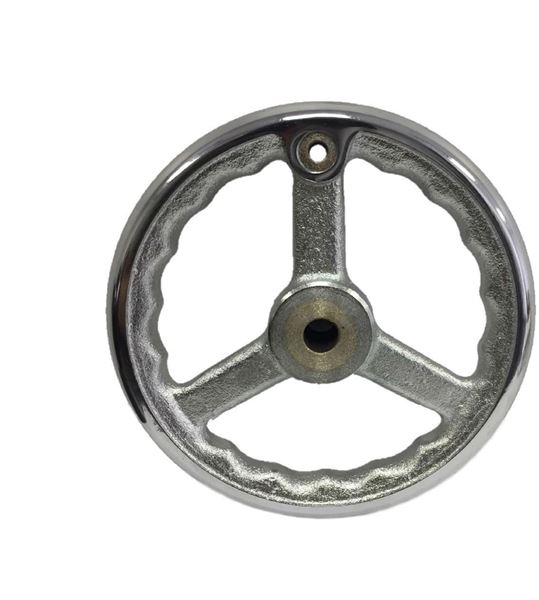

JBF National finished straight handwheels are manufactured from the highest quality fine grain cast iron and feature a chrome plated and polished finish. Larger diameter models feature finger grips around the inner rim for maximum grip. Available in a variety of sizes. Please see component diagram below.

1 - 7 of 7 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Diameter (A)	Hub Length (D)	Rim Thickness (G)	Overall Thickness (C)	Handle Thread Size (F)	Bore Size (B)

FCIHW-3-STR	N/A 3 in	N/A 1.1 in	N/A 0.5 in	N/A 0.9 in	N/A 10-24	N/A 3/8 in
FCIHW-4-STR	N/A 4 in	N/A 1.2 in	N/A 0.6 in	N/A 1 in	N/A 10-24	N/A 3/8 in
FCIHW-5-STR	N/A 5 in	N/A 1.4 in	N/A 0.6 in	N/A 1.1 in	N/A 1/4-20	N/A 3/8 in
FCIHW-6-STR	N/A 6 in	N/A 1.5 in	N/A 0.7 in	N/A 1.3 in	N/A 5/16-18	N/A 1/2 in
FCIHW-8-STR	N/A 8 in	N/A 1.8 in	N/A 0.8 in	N/A 1.5 in	N/A 3/8-16	N/A 5/8 in
FCIHW-10-STR	N/A 10 in	N/A 2 in	N/A 1 in	N/A 1.7 in	N/A 3/8-16	N/A 5/8 in
FCIHW-12-STR	N/A 12 in	N/A 2.4 in	N/A 1.1 in	N/A 1.9 in	N/A 1/2-13	N/A 3/4 in
