Offset Cast Iron Handwheels with or with no Revolving Handle
Handwheels

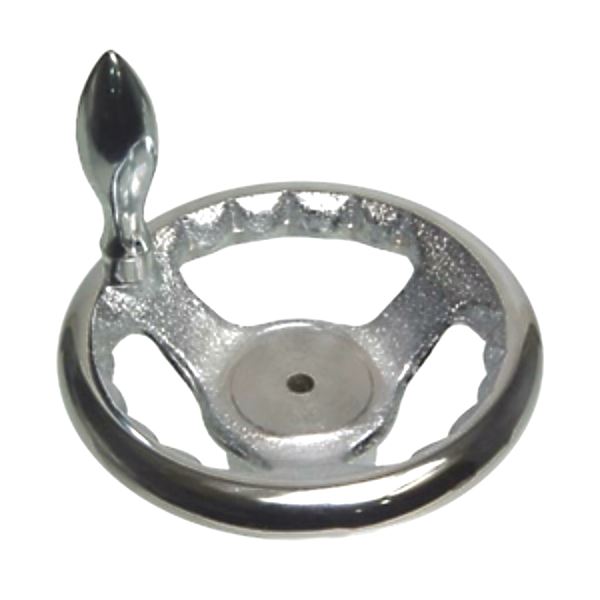

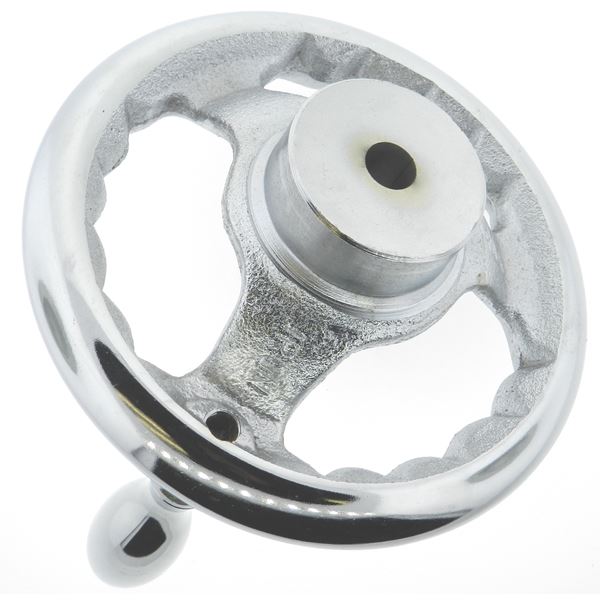

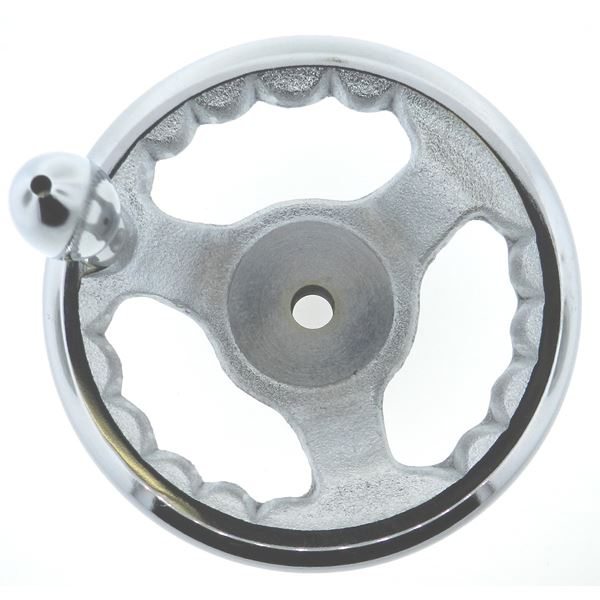

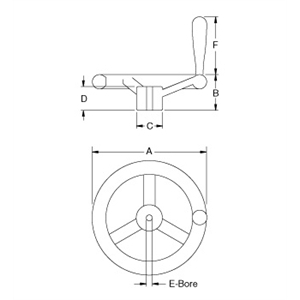

This offset (dished) handwheel from JBF National is crafted from the finest cast iron, and comes in a lustrous nickel plated finish. The polished permanently lubricated revolving handle (optional) ensures operator grip and comfort during repeat use, with the semi-crenelated inside rim ensuring maximum hand and palm grip for minute adjustments. For optimum flexibility, this handwheel features an oversized hub which allows for a variety of set screws, keyways, and bore sizes. Handless models available. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Handle |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1CHRW-1054 1CHRW-1054/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 4 in | Dimension B N/A 1.70 in | Dimension C N/A 1.57 in | Dimension D N/A 0.90 in | Dimension E N/A 3/8 in | Dimension F N/A 2.40 in | Handle N/A Yes |
Drawings
 |
| 2CHRW-1055 2CHRW-1055/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 5 in | Dimension B N/A 1.97 in | Dimension C N/A 1.89 in | Dimension D N/A 0.98 in | Dimension E N/A 3/8 in | Dimension F N/A 2.40 in | Handle N/A Yes |
Drawings
|
| 3CHRW-1056 3CHRW-1056/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 6 in | Dimension B N/A 2.08 in | Dimension C N/A 1.98 in | Dimension D N/A 1.18 in | Dimension E N/A 1/2 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 4CHRW-1057 4CHRW-1057/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 8 in | Dimension B N/A 2.28 in | Dimension C N/A 2.32 in | Dimension D N/A 1.22 in | Dimension E N/A 5/8 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 5CHRW-1058 5CHRW-1058/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 10 in | Dimension B N/A 2.48 in | Dimension C N/A 2.64 in | Dimension D N/A 1.26 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 6CHRW-1059 6CHRW-1059/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 12 in | Dimension B N/A 2.83 in | Dimension C N/A 2.75 in | Dimension D N/A 1.54 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 7CHRW-1060 7CHRW-1060/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 14 in | Dimension B N/A 3.28 in | Dimension C N/A 2.91 in | Dimension D N/A 1.69 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 8CHRW-1061 8CHRW-1061/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 16 in | Dimension B N/A 3.74 in | Dimension C N/A 3.30 in | Dimension D N/A 1.85 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 9CHRW-1062 9CHRW-1062/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 18 in | Dimension B N/A 3.74 in | Dimension C N/A 3.30 in | Dimension D N/A 1.89 in | Dimension E N/A 1 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| 10CHRW-1063 10CHRW-1063/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 20 in | Dimension B N/A 3.74 in | Dimension C N/A 3.30 in | Dimension D N/A 1.97 in | Dimension E N/A 1 in | Dimension F N/A 2.95 in | Handle N/A Yes |
Drawings
|
| FCIHW-7501-4 FCIHW-7501-4/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 4 in | Dimension B N/A 1.70 in | Dimension C N/A 1.57 in | Dimension D N/A 0.90 in | Dimension E N/A 3/8 in | Dimension F N/A 2.40 in | Handle N/A No |
Drawings
|
| FCIHW-7501-5 FCIHW-7501-5/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 5 in | Dimension B N/A 1.97 in | Dimension C N/A 1.89 in | Dimension D N/A 0.98 in | Dimension E N/A 3/8 in | Dimension F N/A 2.40 in | Handle N/A No |
Drawings
|
| FCIHW-7501-6 FCIHW-7501-6/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 6 in | Dimension B N/A 2.08 in | Dimension C N/A 1.98 in | Dimension D N/A 1.18 in | Dimension E N/A 1/2 in | Dimension F N/A 2.95 in | Handle N/A No |
Drawings
|
| FCIHW-7501-8 FCIHW-7501-8/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 8 in | Dimension B N/A 2.28 in | Dimension C N/A 2.32 in | Dimension D N/A 1.22 in | Dimension E N/A 5/8 in | Dimension F N/A 2.95 in | Handle N/A No |
Drawings
|
| FCIHW-7501-10 FCIHW-7501-10/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 10 in | Dimension B N/A 2.48 in | Dimension C N/A 2.64 in | Dimension D N/A 1.26 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A No |
Drawings
|
| FCIHW-7501-12 FCIHW-7501-12/Asset/Cast-Iron-Handwheel-with-Revolving-Handle-299-1A-.jpg | Dimension A N/A 12 in | Dimension B N/A 2.83 in | Dimension C N/A 2.75 in | Dimension D N/A 1.54 in | Dimension E N/A 3/4 in | Dimension F N/A 2.95 in | Handle N/A No |
Drawings
|
