• Plastic Wheels

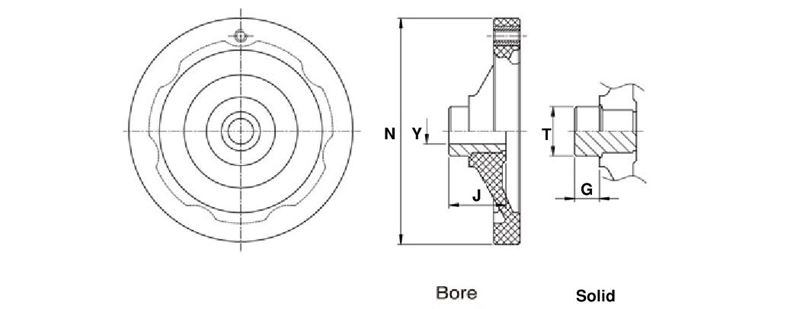

  • <!-Plastic Wheels Line Drawing->

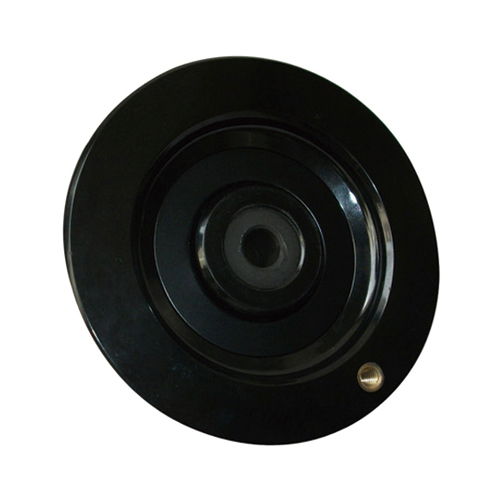

This plastic handwheel from JBF National is manufactured from the highest quality bakelite material and has been designed and tested for ultimate reliability and durability. Please see component diagram below.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Drawings

N/A 100 mm N/A B10 N/A 30 mm N/A 39 mm N/A 15 mm

N/A 125 mm N/A B12 N/A 32 mm N/A 40 mm N/A 15 mm

N/A 100 mm N/A B10 N/A 30 mm N/A 39 mm N/A 15 mm

N/A 125 mm N/A B12 N/A 32 mm N/A 40 mm N/A 15 mm
