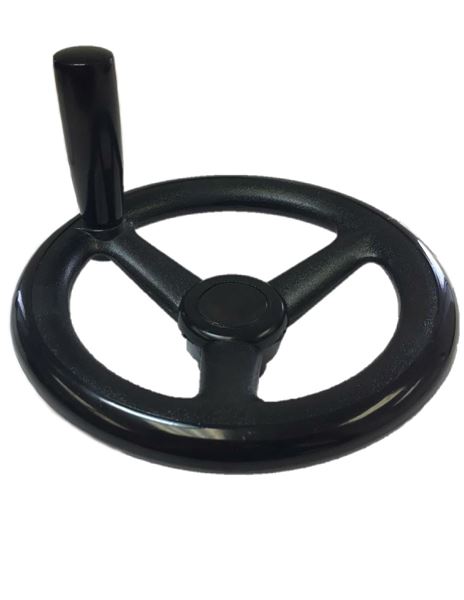

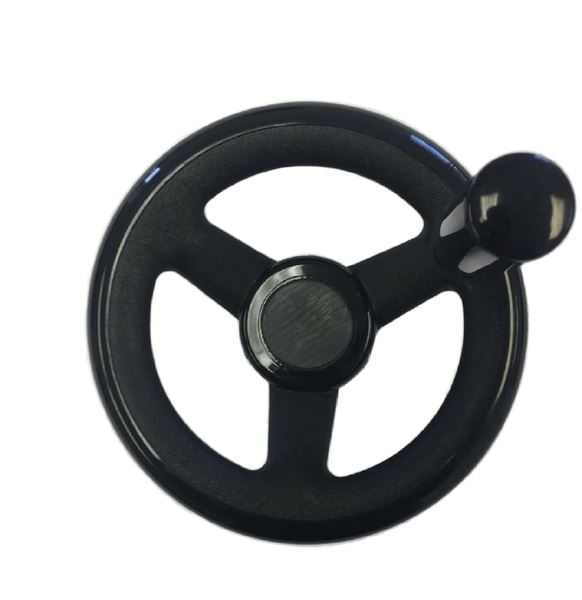

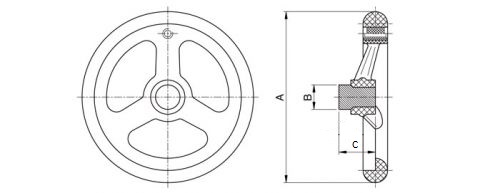

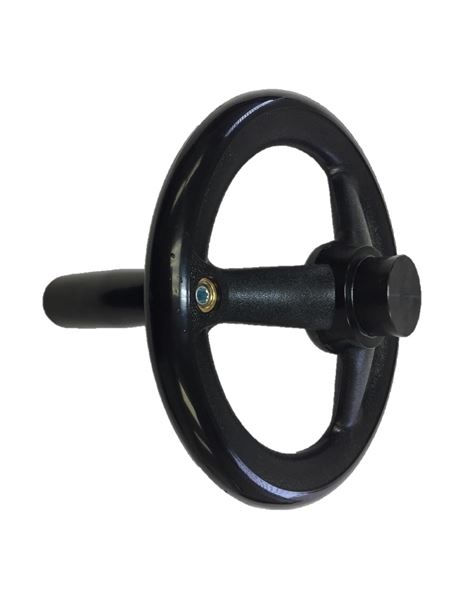

These plastic three spoke offset (dished) handwheels are manufactured from the highest quality nylon and feature a buffed outer rim for a sleek look. For added speed and accuracy these handwheels feature a revolving handle to make multi-revolution adjustments quick and easy. The revolving handle is removable by a simple unscrewing action from the reverse side, in cases where space is limited. Center plugs for sizes 3-5 1/2 are aluminum, with cast iron for the larger diameters. Variety of sizes available. 10 INCH VERSION HAS FIVE SPOKES Please see component diagram below.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1

Item #

Approximate Diameter (A)

Plug Diameter (B)

Plug Height (C)

Drawings

N/A 3 in N/A 0.94 in N/A 1.02 in

N/A 5 in N/A 1.25 in N/A 1.18 in

N/A 5.50 in N/A 1.32 in N/A 1.37 in

N/A 6.25 in N/A 1.41 in N/A 1.41 in

N/A 8 in N/A 1.51 in N/A 1.65 in

N/A 10 in N/A 1.73 in N/A 1.57 in
