• Stainless Steel Handwheels

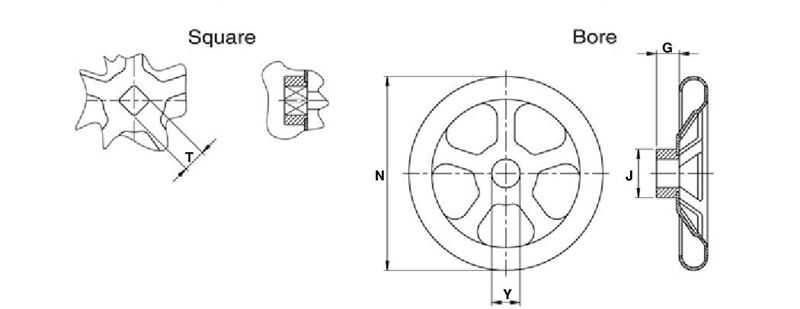

  • <!-Stainless Steel Handwheels Line Drawing->

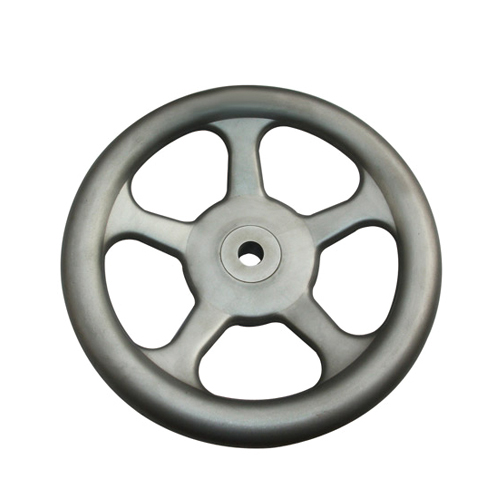

This stainless steel handwheel from JBF National is manufactured from the highest quality matt finished stainless steel. This handwheel comes with either a round bore or square mounting hole, and a handle-less design that allows for space saving maximization. Please see component diagram below.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Drawings

N/A 160 mm N/A B12 N/A V12 N/A 30 mm N/A 20 mm

N/A 200 mm N/A B14 N/A V14 N/A 40 mm N/A 24 mm

N/A 250 mm N/A B17 N/A V17 N/A 45 mm N/A 28 mm

N/A 160 mm N/A B12 N/A V12 N/A 30 mm N/A 20 mm

N/A 200 mm N/A B14 N/A V14 N/A 40 mm N/A 24 mm

N/A 250 mm N/A B17 N/A V17 N/A 45 mm N/A 28 mm
