Stainless Steel Handwheels with Revolving Handle
Handwheels

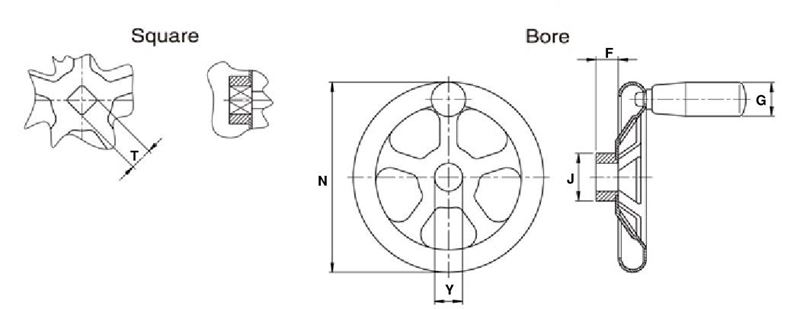

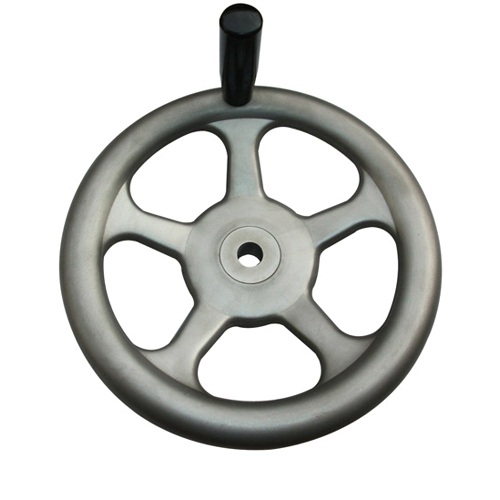

This stainless steel handwheel from JBF National is manufactured from the highest quality matt finished stainless steel and features a black bakelite revolving handle. Handwheel comes with either a round bore or square mounting hole. Please see component diagram below.
Item # |
Dimension N |
Dimension Y |
Dimension T |
Dimension J |
Dimension G |
Dimension R |
Drawings |
|---|---|---|---|---|---|---|---|
| 1HW-119B 1HW-119B/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 160 mm | Dimension Y N/A B12 | Dimension T N/A V12 | Dimension J N/A 30 mm | Dimension G N/A 26 mm | Dimension R N/A 20 mm |
Drawings
 |
| 1HW-120B 1HW-120B/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 200 mm | Dimension Y N/A B14 | Dimension T N/A V14 | Dimension J N/A 40 mm | Dimension G N/A 26 mm | Dimension R N/A 24 mm |
Drawings
|
| 1HW-121B 1HW-121B/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 250 mm | Dimension Y N/A B17 | Dimension T N/A V17 | Dimension J N/A 45 mm | Dimension G N/A 28 mm | Dimension R N/A 28 mm |
Drawings
|
| 1HW-119S 1HW-119S/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 160 mm | Dimension Y N/A B12 | Dimension T N/A V12 | Dimension J N/A 30 mm | Dimension G N/A 26 mm | Dimension R N/A 20 mm |
Drawings
|
| 1HW-120S 1HW-120S/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 200 mm | Dimension Y N/A B14 | Dimension T N/A V14 | Dimension J N/A 40 mm | Dimension G N/A 26 mm | Dimension R N/A 24 mm |
Drawings
|
| 1HW-121S 1HW-121S/Asset/SS-Handwheel--Revolving-Handle-1A-01--.jpg | Dimension N N/A 250 mm | Dimension Y N/A B17 | Dimension T N/A V17 | Dimension J N/A 45 mm | Dimension G N/A 28 mm | Dimension R N/A 28 mm |
