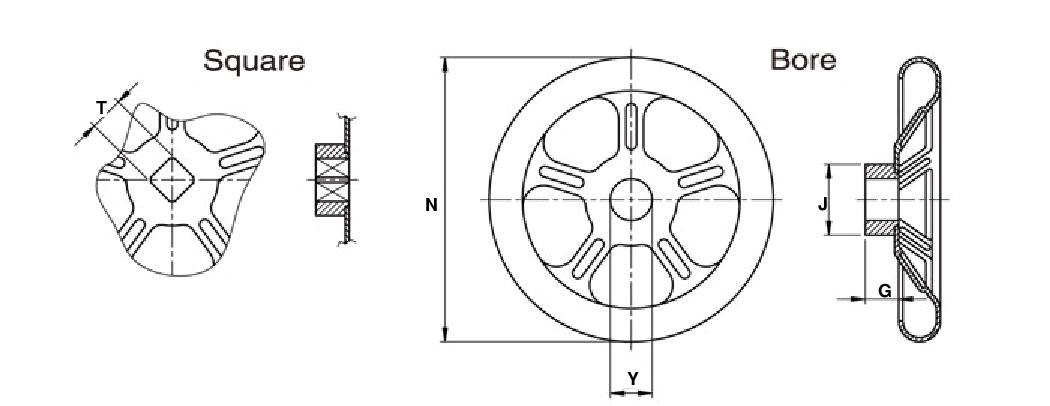

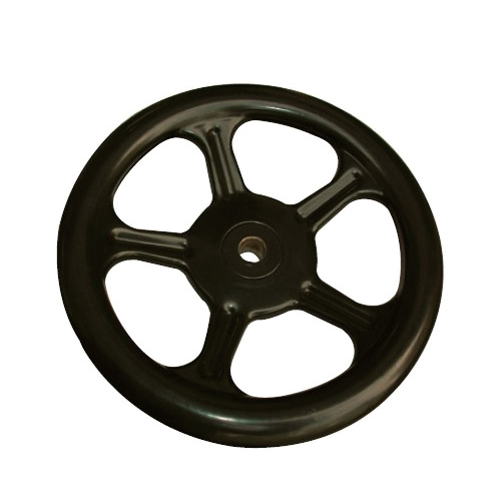

This steel handwheel from JBF National is manufactured from the highest quality black painted steel. This handwheel comes with either a round bore or square mounting hole, and a handle-less design that allows for space saving maximization. Please see component diagram below.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Drawings

N/A 125 mm N/A B11 N/A V11 N/A 30 mm N/A 18 mm

N/A 160 mm N/A B12 N/A V12 N/A 30 mm N/A 20 mm

N/A 200 mm N/A B14 N/A V14 N/A 40 mm N/A 24 mm

N/A 250 mm N/A B17 N/A V17 N/A 45 mm N/A 28 mm

N/A 315 mm N/A B19 N/A V19 N/A 55 mm N/A 33 mm

N/A 400 mm N/A B24 N/A V24 N/A 65 mm N/A 38 mm

N/A 125 mm N/A B11 N/A V11 N/A 30 mm N/A 18 mm

N/A 160 mm N/A B12 N/A V12 N/A 30 mm N/A 20 mm

N/A 200 mm N/A B14 N/A V14 N/A 40 mm N/A 24 mm

N/A 250 mm N/A B17 N/A V17 N/A 45 mm N/A 28 mm

N/A 315 mm N/A B19 N/A V19 N/A 55 mm N/A 33 mm

N/A 400 mm N/A B24 N/A V24 N/A 65 mm N/A 38 mm
