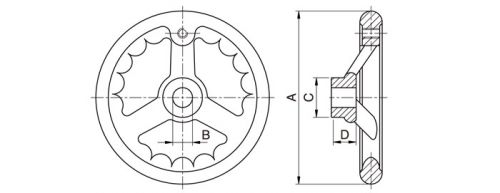

  • <!-Unfinished Straight Handwheels Line Drawing->

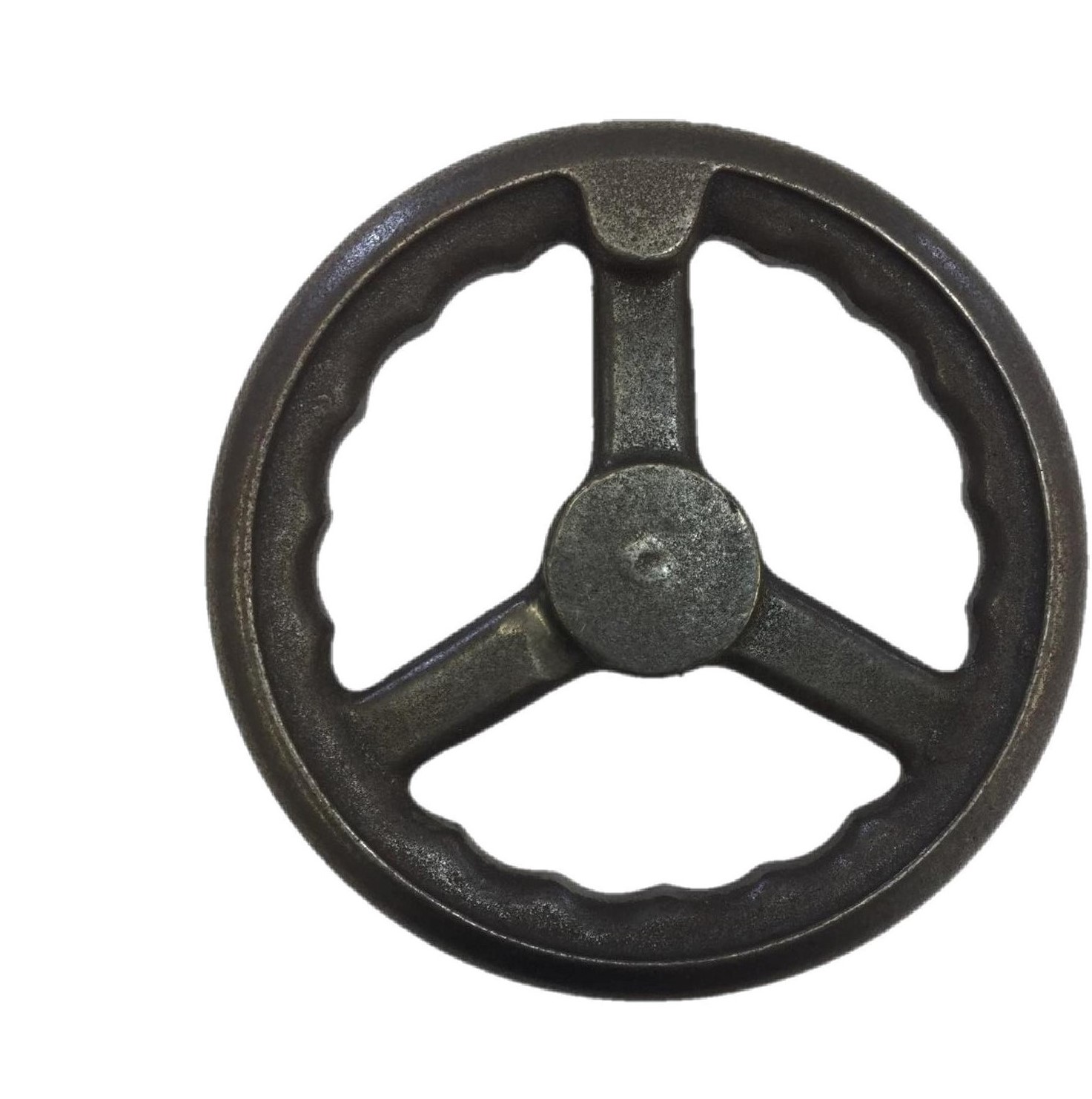

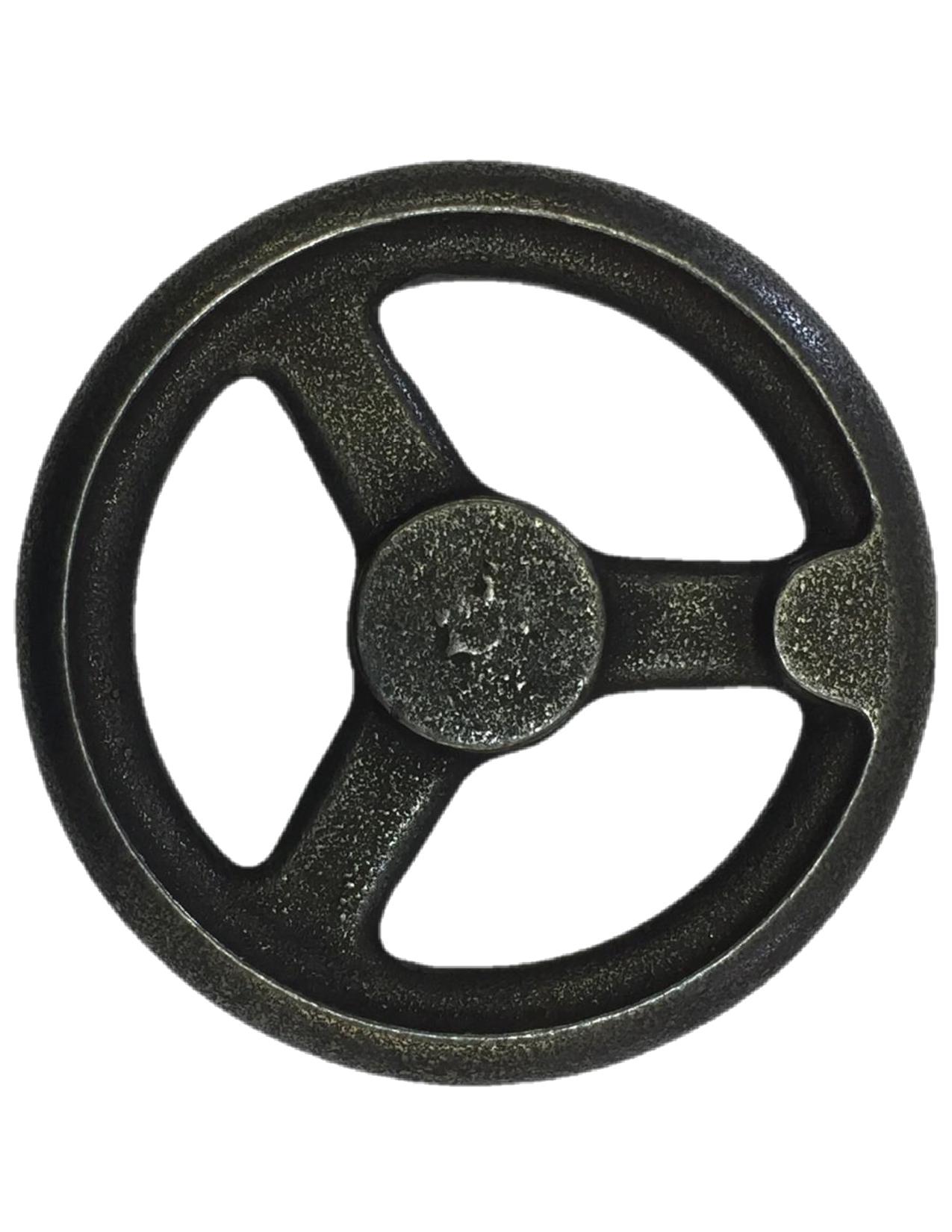

JBF National unfinished straight handwheels are manufactured from the highest quality fine grain cast iron and are available in a variety of sizes. For projects sans stylistic considerations, these handwheels deliver more economic value than any other handwheel option. Larger diameter models feature finger grips around the inner rim for maximum grip. Please see component diagram below.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Diameter (A)

Bore Type

Hub Diameter (C)

Hub Thickness (D)

Overall Thickness

Material Type

Drawings

N/A 3 in N/A Solid N/A 1.10 in N/A 1.20 in N/A 0.90 in N/A Fine Grain Cast Iron

N/A 4 in N/A Solid N/A 1.20 in N/A 1.375 in N/A 1 in N/A Fine Grain Cast Iron

N/A 5 in N/A Solid N/A 1.40 in N/A 1.38 in N/A 1.10 in N/A Fine Grain Cast Iron

N/A 6 in N/A Solid N/A 1.50 in N/A 1.57 in N/A 1.30 in N/A Fine Grain Cast Iron

N/A 8 in N/A Solid N/A 1.80 in N/A 1.80 in N/A 1.50 in N/A Fine Grain Cast Iron

N/A 10 in N/A Solid N/A 2 in N/A 1.92 in N/A 1.70 in N/A Fine Grain Cast Iron

N/A 12 in N/A Solid N/A 2.40 in N/A 2 in N/A 1.90 in N/A Fine Grain Cast Iron
