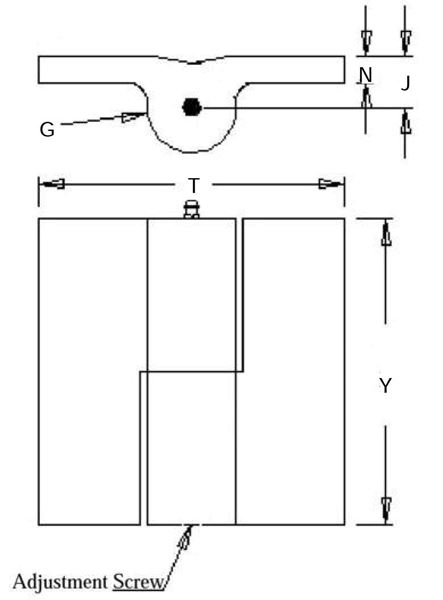

• <!-Steel Adjustable Hinges Line Drawing->
These adjustable hinges from JBF National come manufactured from the highest quality alloy steel, and have been designed and tested for ultimate reliability. With these adjustable hinges, costly door adjustments are obviated by its vertical movement capability, rendering door removal unnecessary. The flexibility of these hinges makes installation a cinch, and eliminates door sag. Contact a JBF National sales engineer today for further information. Please see component diagram below.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension G

Dimension R

Weight

Capacity

Drawings

N/A 3/8 in N/A 5 in N/A 4 in N/A 1.50 in N/A 7/8 in N/A 4.70 lb N/A 1,050 lb

N/A 1/2 in N/A 6 in N/A 6 in N/A 1.75 in N/A 1 in N/A 9 lb N/A 2,200 lb

N/A 1/2 in N/A 6 in N/A 6 in N/A 2 in N/A 1-1/8 in N/A 10 lb N/A 3,200 lb

N/A 1/2 in N/A 7-1/2 in N/A 6 in N/A 2 in N/A 1-1/8 in N/A 12.50 lb N/A 4,000 lb

N/A 3/4 in N/A 8 in N/A 8 in N/A 2 in N/A 1-1/8 in N/A 21 lb N/A 5,000 lb

N/A 1 in N/A 10 in N/A 8 in N/A 2-1/2 in N/A 1-3/8 in N/A 37 lb N/A 7,000 lb

N/A 1-1/4 in N/A 12 in N/A 12 in N/A 4 in N/A 2-1/4 in N/A 90 lb N/A 11,000 lb

N/A 1-1/4 in N/A 16 in N/A 16 in N/A 4 in N/A 2-1/4 in N/A 140 lb N/A 15,000 lb

N/A 1-3/4 in N/A 16 in N/A 16 in N/A 5 in N/A 2-3/4 in N/A 190 lb N/A 25,000 lb
