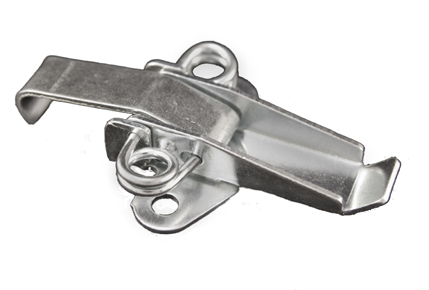

CA-1010 Tension Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-1010 is manufactured from either clear zinc plated steel or passivated stainless steel. The steel version provides 75-160 Lbs. of clamping force and stainless steel provides 60-120 Lbs. This model features an average ultimate load rating of 400 Lbs. for steel and 380 Lbs. for stainless steel. Uses strike SK-4000.
Item # |
Clamping Force |
Material |
Finish |

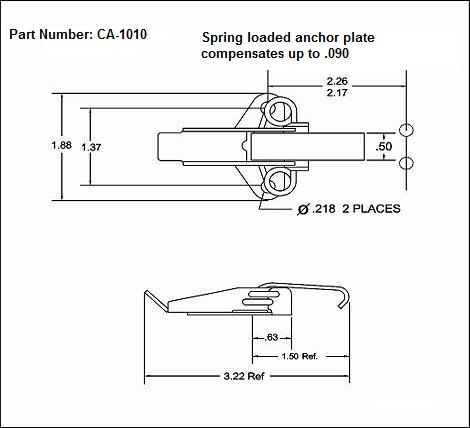

Drawings |
|---|---|---|---|---|
| CA-1010-SS-CP-218 CA-1010-SS-CP-218/Asset/Draw-Latch-CA-1010.jpg | Clamping Force N/A 60 to 120 lb | Material N/A Stainless Steel | Finish N/A Passivated |
Drawings
![]() |
| CA-1010-ST-CZ-218 CA-1010-ST-CZ-218/Asset/Draw-Latch-CA-1010.jpg | Clamping Force N/A 75 to 160 lb | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
![]() |
