• CA-1020 Tension Draw Latches
  • <!-CA-1020 Tension Draw Latches - 2->

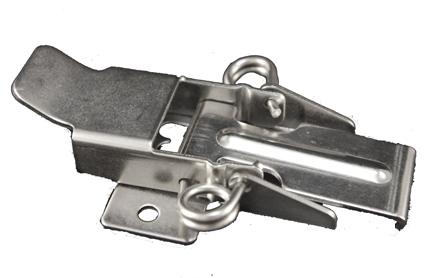

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-1020 is manufactured from either clear zinc plated steel or passivated stainless steel. This model features an average ultimate load rating of 790 Lbs. for steel and 860 Lbs. for stainless steel. Uses strike SK-1010.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Average Load Rating

Material

Finish

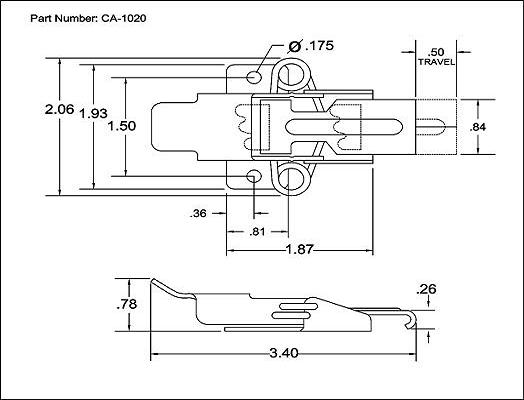

Drawings

N/A 860 lb N/A Stainless Steel N/A Clear Passivate

N/A 790 lb N/A Steel N/A Clear Zinc

1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
