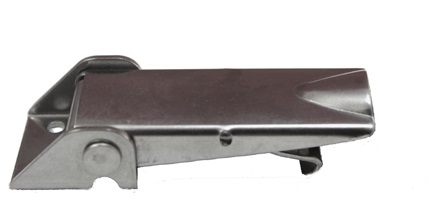

CA-1051 Under-Center Exposed Base Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-1051 is manufactured from clear zinc, zinc nickel plated steel, or passivated stainless steel. This model features 10/32 threading and an overall pull strength of 200 Lbs. Uses strike SK-1051.
Item # |
Thread Size |
Pull Strength |
Material |
Finish |

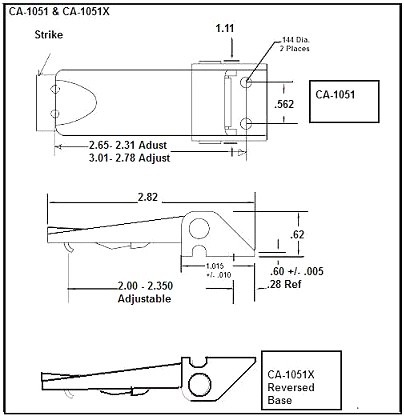

Drawings |
|---|---|---|---|---|---|
| CA-1051-ST-ZNI-144 CA-1051-ST-ZNI-144/Asset/Under-Center-Latch-CA-1051.jpg | Thread Size N/A 10-32 | Pull Strength N/A 200 lb | Material N/A Steel | Finish N/A Zinc-Nickel Plated |
Drawings
 |
| CA-1051-SS-CP-144 CA-1051-SS-CP-144/Asset/Under-Center-Latch-CA-1051.jpg | Thread Size N/A 10-32 | Pull Strength N/A 200 lb | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-1051-ST-CZ-144 CA-1051-ST-CZ-144/Asset/Under-Center-Latch-CA-1051.jpg | Thread Size N/A 10-32 | Pull Strength N/A 200 lb | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
