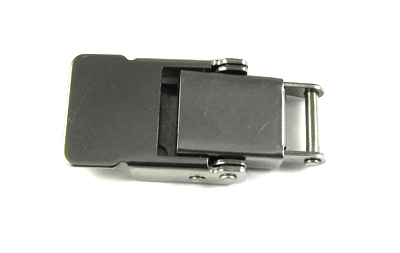

CA-18015 Over-Center Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-18015 is manufactured from yellow cadmium steel or passivated 304 stainless steel. Uses strike SK-3500.
Item # |
Hole Diameter |
Base Material |
Material |
Finish |

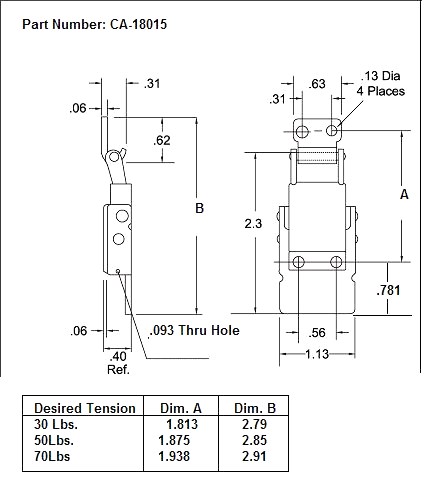

Drawings |
|---|---|---|---|---|---|
| CA-18015-STSS-CY-130 CA-18015-STSS-CY-130/Asset/Over-Center-Latch-CA-18015_0-.jpg | Hole Diameter N/A | Base Material N/A Steel | Material N/A 304 Stainless Steel | Finish N/A Yellow Cadmium |
Drawings
 |
| CA-18015-ST-CY-130 CA-18015-ST-CY-130/Asset/Over-Center-Latch-CA-18015_0-.jpg | Hole Diameter N/A | Base Material N/A | Material N/A Steel | Finish N/A Yellow Cadmium |
Drawings
|
| CA-18015-SS-CP-130 CA-18015-SS-CP-130/Asset/Over-Center-Latch-CA-18015_0-.jpg | Hole Diameter N/A 0.130 in | Base Material N/A | Material N/A 304 Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-18015-ST-YCD-144 CA-18015-ST-YCD-144/Asset/Over-Center-Latch-CA-18015_0-.jpg | Hole Diameter N/A | Base Material N/A | Material N/A Steel | Finish N/A Yellow Cadmium |
Drawings
|
