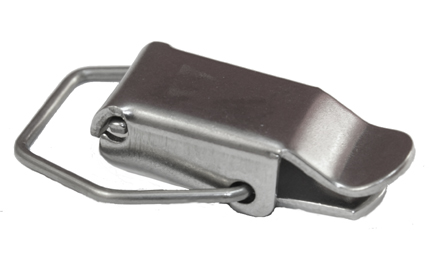

CA-2000 Over-Center Draw Latches with Hexagonal Bail
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2000 is manufactured from plain finish aluminum, clear zinc plated steel, or passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance. Uses strike SK-2000.
Item # |
Material |
Finish |

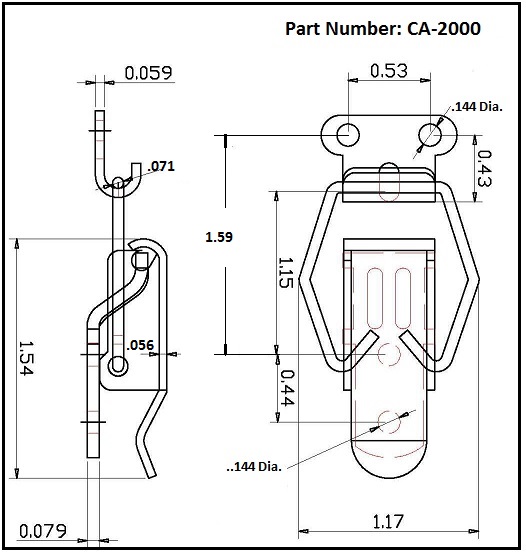

Drawings |
|---|---|---|---|
| CA-2000-SS-CP-144 CA-2000-SS-CP-144/Asset/Over-Center-Draw-Latch-Hex-Bail-CA-2000-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
 |
| CA-2000-ST-CZ-144 CA-2000-ST-CZ-144/Asset/Over-Center-Draw-Latch-Hex-Bail-CA-2000-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
| CA-2000-AL-NF-144 CA-2000-AL-NF-144/Asset/Over-Center-Draw-Latch-Hex-Bail-CA-2000-.jpg | Material N/A Aluminum | Finish N/A Plain |
Drawings
|
| CA-2010-ST-CZ-130 CA-2010-ST-CZ-130/Asset/Over-Center-Draw-Latch-Hex-Bail-CA-2000-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
