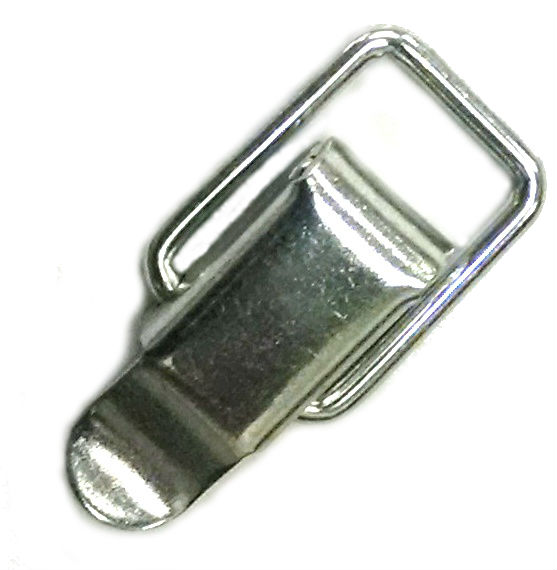

CA-2040 Over-Center Draw Latches with Straight Loop Bail
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2040 is manufactured from clear zinc plated steel, unfinished steel, or passivated stainless steel. Available with or without holes. Uses strike SK-2000.
Base has 3 Weld Projections.
Base has 3 Weld Projections.
Item # |
Material |
Finish |

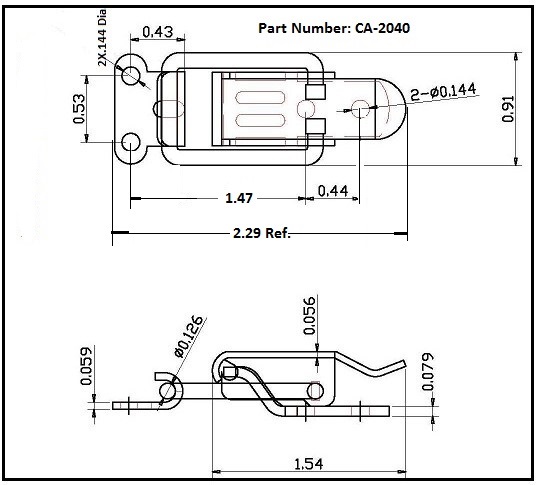

Drawings |
|---|---|---|---|
| CA-2040-SS-CP-144 CA-2040-SS-CP-144/Asset/Over-Center-Draw-Latch-Straight-Loop-Bail-CA-2040-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
 |
| CA-2040-ST-CZ-000 CA-2040-ST-CZ-000/Asset/Over-Center-Draw-Latch-Straight-Loop-Bail-CA-2040-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
| CA-2040-ST-CZ-144 CA-2040-ST-CZ-144/Asset/Over-Center-Draw-Latch-Straight-Loop-Bail-CA-2040-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
| CA-2040-SS-CP-3WP CA-2040-SS-CP-3WP/Asset/Over-Center-Draw-Latch-Straight-Loop-Bail-CA-2040-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-2040-ST-NF-000 CA-2040-ST-NF-000/Asset/Over-Center-Draw-Latch-Straight-Loop-Bail-CA-2040-.jpg | Material N/A Steel | Finish N/A No Finish |
Drawings
|
