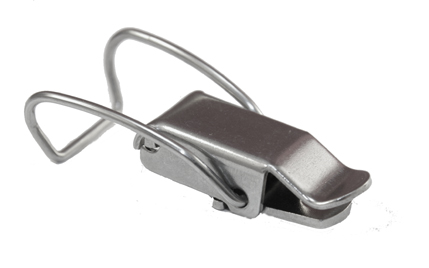

CA-2044 Over-Center Draw Latches with Hooked Loop Bail
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2044 is manufactured from either clear zinc plated steel or passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance. Uses strike SK-2000.
Item # |
Material |
Finish |

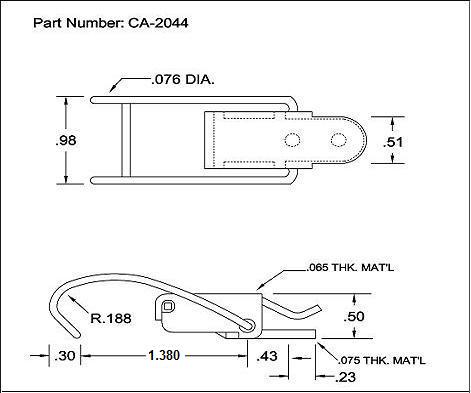

Drawings |
|---|---|---|---|
| CA-2044-SS-CP-144 CA-2044-SS-CP-144/Asset/Over-Center-Draw-Latch-Hooked-Loop-CA-2044-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
![]() |
| CA-2044-ST-CZ-144 CA-2044-ST-CZ-144/Asset/Over-Center-Draw-Latch-Hooked-Loop-CA-2044-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
![]() |
