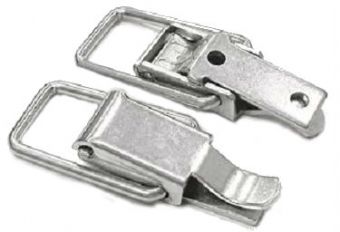

CA-2050 Over-Center Draw Latches with Straight Loop Bail
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2050 is manufactured from nickel plated or clear zinc plated steel, or clear passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance. Uses strike SK-2050.
Item # |
Material |
Finish |

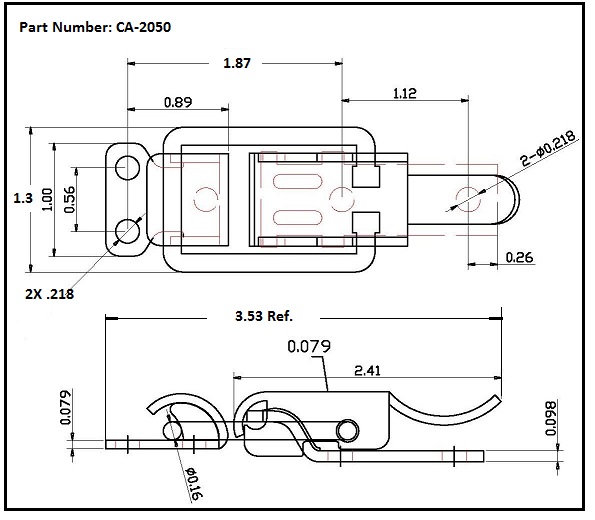

Drawings |
|---|---|---|---|
| CA-2050-SS-CP-218 CA-2050-SS-CP-218/Asset/Draw-Latch-Straight-Loop-Bail-CA-2050.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
![]() |
| CA-2050-ST-CZ-218 CA-2050-ST-CZ-218/Asset/Draw-Latch-Straight-Loop-Bail-CA-2050.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
![]() |
| CA-2050-ST-NI-218 CA-2050-ST-NI-218/Asset/Draw-Latch-Straight-Loop-Bail-CA-2050.jpg | Material N/A Steel | Finish N/A Nickel |
Drawings
![]() |
