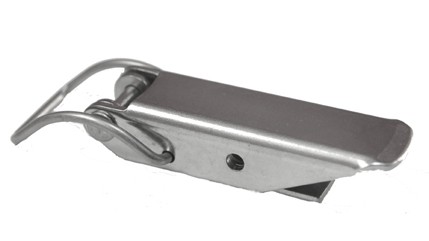

CA-2400 Over Center Draw Latches with Curved Loop Bail
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This draw latch is manufactured from passivated and yellow chromate stainless steel or clear zinc steel. One model features a steel zinc body and stainless loop. Uses strikes SK-2140 or SK-2400.
Item # |
Material |
Finish |
Features |

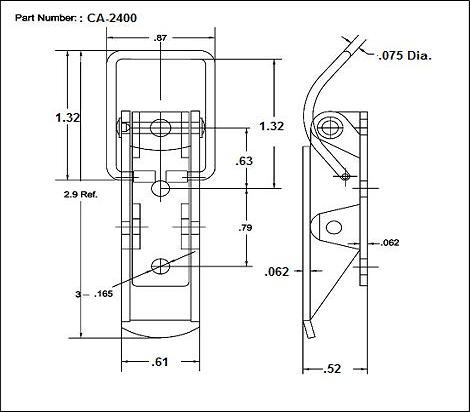

Drawings |
|---|---|---|---|---|
| CA-2400-SS-CP-170 CA-2400-SS-CP-170/Asset/Over-Center-Draw-Latch-Curved-Loop-Bail-CA-2400-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated | Features N/A |
Drawings
![]() |
| CA-2400-SS-YC-170 CA-2400-SS-YC-170/Asset/Over-Center-Draw-Latch-Curved-Loop-Bail-CA-2400-.jpg | Material N/A Stainless Steel | Finish N/A Yellow Chromate | Features N/A |
Drawings
![]() |
| CA-2400S-ST-CZ-170 CA-2400S-ST-CZ-170/Asset/Over-Center-Draw-Latch-Curved-Loop-Bail-CA-2400-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Features N/A Steel zinc body and stainless loop. |
Drawings
![]() |
| CA-2400-ST-CZ-170 CA-2400-ST-CZ-170/Asset/Over-Center-Draw-Latch-Curved-Loop-Bail-CA-2400-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Features N/A |
Drawings
![]() |
