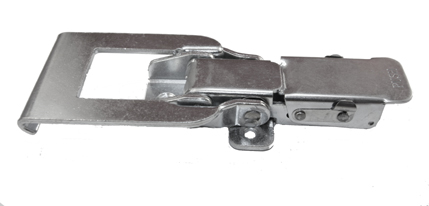

CA-2501XL and CA-2501XLS Adjustable Tension Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This adjustable latch is manufactured from clear zinc plated or yellow dichromate steel. CA-2501XL and CA-2501XLS allow for tension adjustment based on latch/keeper hole distance and have been tested at 2500 Lbs. without failure. Available with or without spring clip.
Item # |
Material |
Finish |
Spring Clip |

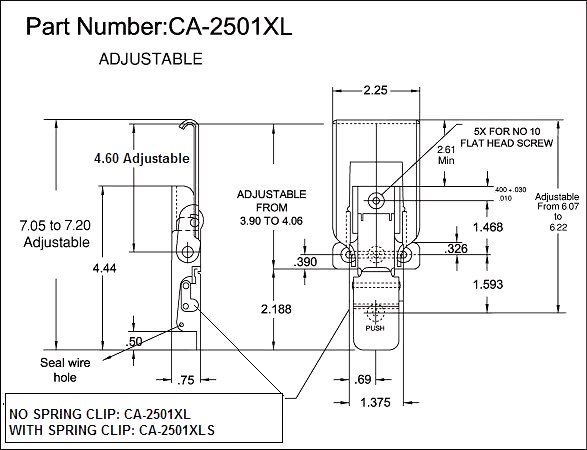

Drawings |
|---|---|---|---|---|
| CA-2501XL-ST-CZ-189 CA-2501XL-ST-CZ-189/Asset/Adjustable-Tension-Latch-CA-2501XL--CA-2501XLS-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Spring Clip N/A No |
Drawings
![]() |
| CA-2501XL-ST-YZ-189 CA-2501XL-ST-YZ-189/Asset/Adjustable-Tension-Latch-CA-2501XL--CA-2501XLS-.jpg | Material N/A Steel | Finish N/A Yellow Dichromate | Spring Clip N/A No |
Drawings
![]() |
| CA-2501XLS-ST-CZ-189 CA-2501XLS-ST-CZ-189/Asset/Adjustable-Tension-Latch-CA-2501XL--CA-2501XLS-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Spring Clip N/A Yes |
Drawings
![]() |
