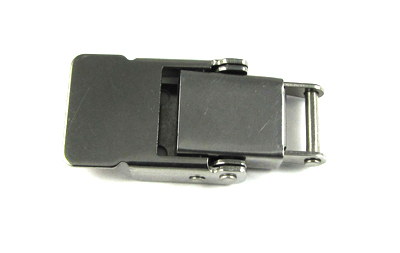

CA-3500 Compression Spring Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3500 is manufactured from steel and stainless steel in a variety of finishes including olive drab, black oxide, and cadmium plated. This model has an ultimate strength rating of 600 Lbs. Uses strike SK-3500.
Item # |
Material |
Finish |
Ultimate Strength Rating |
Hole Diameter |

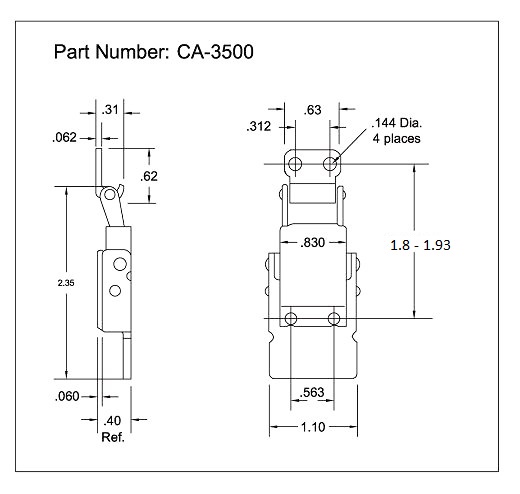

Drawings |
|---|---|---|---|---|---|
| CA-3500-ST-OD-144 CA-3500-ST-OD-144/Asset/Draw-Latch-Compression-Spring-CA-3500.jpg | Material N/A Steel | Finish N/A Olive Drab Zinc | Ultimate Strength Rating N/A 600 lb | Hole Diameter N/A |
Drawings
 |
| CA-3500-SS-CP-(.130 or .144) CA-3500-SS-CP-(.130 or .144)/Asset/Draw-Latch-Compression-Spring-CA-3500.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated | Ultimate Strength Rating N/A 600 lb | Hole Diameter N/A 0.130 in0.144 in |
Drawings
|
| CA-3500-ST-CZ-(.130 or .140) CA-3500-ST-CZ-(.130 or .140)/Asset/Draw-Latch-Compression-Spring-CA-3500.jpg | Material N/A Steel | Finish N/A Clear Zinc | Ultimate Strength Rating N/A 600 lb | Hole Diameter N/A 0.130 in0.144 in |
Drawings
|
| CA-3500-SS-BO(.130 or .140) CA-3500-SS-BO(.130 or .140)/Asset/Draw-Latch-Compression-Spring-CA-3500.jpg | Material N/A Stainless Steel | Finish N/A Black Oxide | Ultimate Strength Rating N/A 600 lb | Hole Diameter N/A 0.130 in0.144 in |
Drawings
|
| CA-3500-ST-CD-130 CA-3500-ST-CD-130/Asset/Draw-Latch-Compression-Spring-CA-3500.jpg | Material N/A Steel | Finish N/A Cadmium Plated | Ultimate Strength Rating N/A 600 lb | Hole Diameter N/A |
Drawings
|
