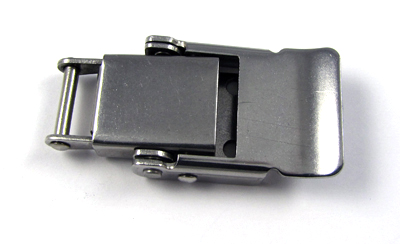

CA-3510 Tab Up Compression Spring Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3510 is manufactured from steel and stainless steel in a variety of finishes including clear passivated, cadmium plated, and black oxide. This model features three high tension compression springs and allows for tension adjustment based on base/strike hole distance. Uses strike SK-3500.
Item # |
Material |
Finish |

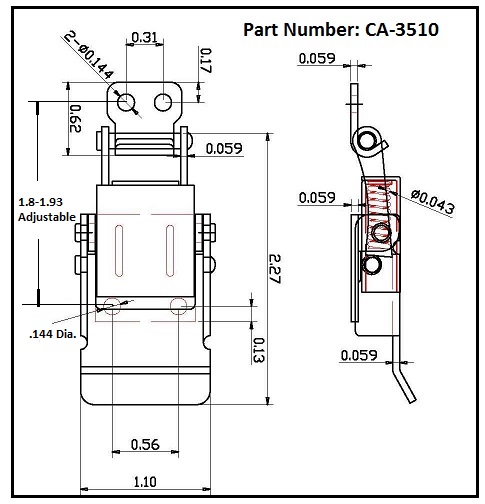

Drawings |
|---|---|---|---|
| CA-3510-SS-CP-144 CA-3510-SS-CP-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
![]() |
| CA-3510-ST-CZ-144 CA-3510-ST-CZ-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
![]() |
| CA-3510-ST-CD-144 CA-3510-ST-CD-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Steel | Finish N/A Cadmium Plated |
Drawings
![]() |
| CA-3510-SS-EC-144 CA-3510-SS-EC-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Stainless Steel | Finish N/A Epoxy Coated |
Drawings
![]() |
| CA-3510 -ST-NF-144 CA-3510 -ST-NF-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Steel | Finish N/A No Finish |
Drawings
![]() |
| CA-3510-SS-BO-144 CA-3510-SS-BO-144/Asset/Compression-Spring-Draw-Latch-CA-3510.jpg | Material N/A Stainless Steel | Finish N/A Black Oxide |
Drawings
![]() |
