CA-3510X Tab Up Compression Spring Draw Latches with Hook
Latches and Catches

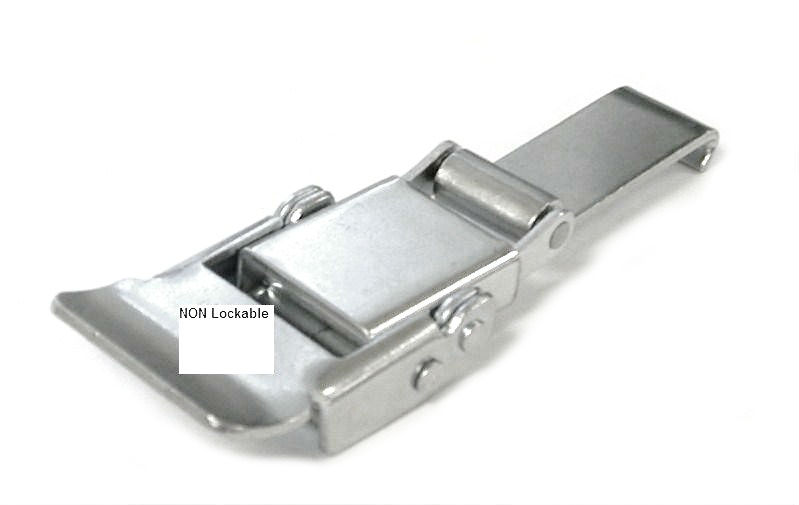

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3510X is manufactured from clear zinc plated steel or passivated stainless steel. This model allows for tension adjustment based on base/strike hole distance and has an ultimate strength rating of 600 Lbs., featuring a long hook. Uses strike SK-3500.
Item # |
Material |
Finish |
Ultimate Strength Rating |

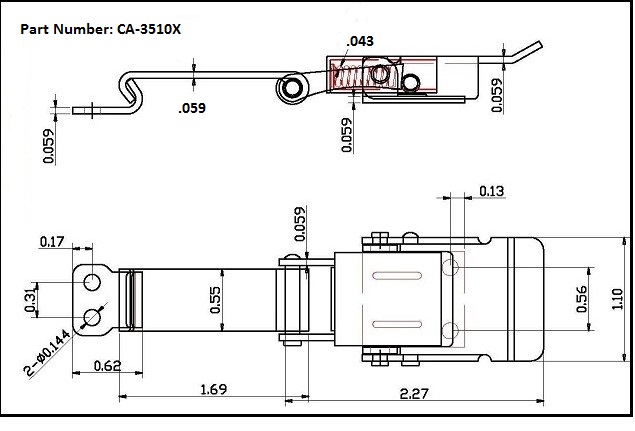

Drawings |
|---|---|---|---|---|
| CA-3510X-ST-CZ-144 CA-3510X-ST-CZ-144/Asset/CompressionSpringDraw-Latch-Long-Hook-CA-3510X-9-.jpg | Material N/A Steel | Finish N/A Clear Zinc | Ultimate Strength Rating N/A 600 lb |
Drawings
![]() |
| CA-3510X-SS-CP-144 CA-3510X-SS-CP-144/Asset/CompressionSpringDraw-Latch-Long-Hook-CA-3510X-9-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated | Ultimate Strength Rating N/A 600 lb |
Drawings
![]() |
