• CA-3520 Tab Down Compression Spring Draw Latches

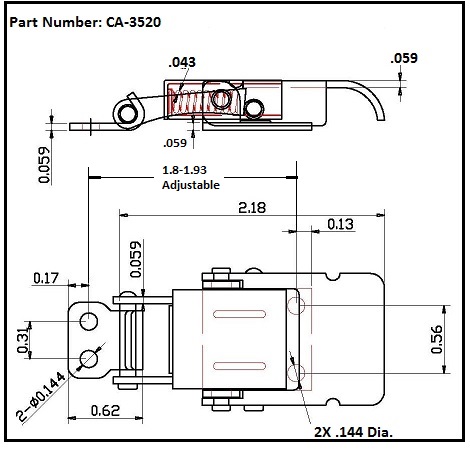

  • <!-CA-3520s Draw Latches with Compression Springs Line Drawing->
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3520 is manufactured from steel and stainless steel in a variety of finishes including clear zinc, cadmium, and olive drab. This catch features three compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter

Ultimate Strength Rating

Material

Finish

Drawings

N/A N/A 600 lb N/A Steel N/A Clear Zinc

N/A N/A 600 lb N/A Stainless Steel N/A Clear Passivated

N/A N/A 600 lb N/A Steel N/A Cadmium Finish

N/A 0.144 in N/A 600 lb N/A Steel N/A Without Finish

N/A N/A 600 lb N/A Steel N/A Olive Drab Clear Zinc

N/A N/A 600 lb N/A Steel N/A Clear Zinc

N/A N/A 600 lb N/A Steel N/A No Finish
