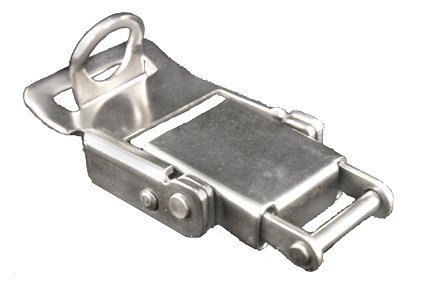

CA-3530 Tab Up Lockable Compression Spring Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3530 is manufactured from clear zinc plated steel, passivated stainless steel, black oxide stainless steel, 316 stainless steel, or stainless steel with an E. Coat finish. This lockable latch features three compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500.
Item # |
Ultimate Strength Rating |
Material |
Finish |
Hole Diameter |

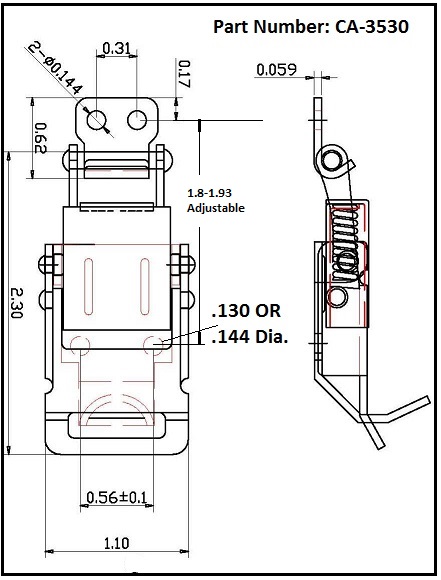

Drawings |
|---|---|---|---|---|---|
| CA-3530-ST-CZ-(0.130 or 0.144) CA-3530-ST-CZ-(0.130 or 0.144)/Asset/Lockable-Draw-Latch-with-Compression-Springs-CA-3530-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Steel | Finish N/A Clear Zinc | Hole Diameter N/A 0.130 in0.144 in |
Drawings
 |
| CA-3530-SS-CP-(0.130 or 0.144) CA-3530-SS-CP-(0.130 or 0.144)/Asset/Lockable-Draw-Latch-with-Compression-Springs-CA-3530-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Clear Passivated | Hole Diameter N/A 0.130 in0.144 in |
Drawings
|
| CA-3530-SS-BO-(0.130 or 0.144) CA-3530-SS-BO-(0.130 or 0.144)/Asset/Lockable-Draw-Latch-with-Compression-Springs-CA-3530-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Black Oxide | Hole Diameter N/A 0.130 in0.144 in |
Drawings
|
| CA-3530-316SS-CP-144 CA-3530-316SS-CP-144/Asset/Lockable-Draw-Latch-with-Compression-Springs-CA-3530-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Clear Passivated | Hole Diameter N/A 0.144 in |
Drawings
|
| CA-3530-SS-EC-144 CA-3530-SS-EC-144/Asset/Lockable-Draw-Latch-with-Compression-Springs-CA-3530-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Epoxy Coated | Hole Diameter N/A |
Drawings
|
