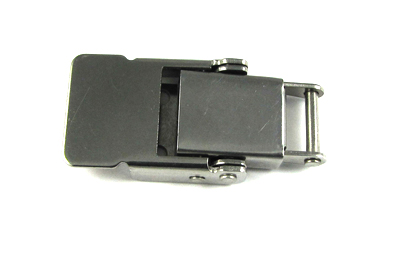

CA-3550 Compression Spring Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3550 is manufactured from steel or stainless steel in one of four finishes including, clear zinc and olive drab. This model has an ultimate strength rating of 600 Lbs. Uses strike SK-3500.
Item # |
Ultimate Strength Rating |
Material |
Finish |

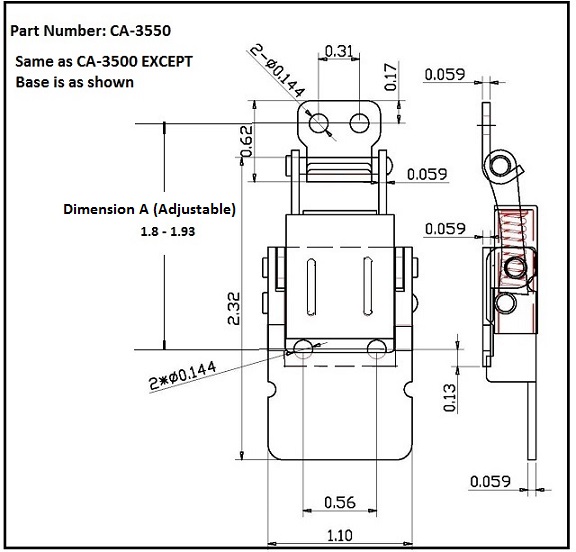

Drawings |
|---|---|---|---|---|
| CA-3550-ST-CZ-144 CA-3550-ST-CZ-144/Asset/Draw-Latch-with-Compression-Springs-CA-3550-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
 |
| CA-3550-SS-CP-144 CA-3550-SS-CP-144/Asset/Draw-Latch-with-Compression-Springs-CA-3550-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-3550-SS-BO-144 CA-3550-SS-BO-144/Asset/Draw-Latch-with-Compression-Springs-CA-3550-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Black Oxide |
Drawings
|
| CA-3550-ST-COD-144 CA-3550-ST-COD-144/Asset/Draw-Latch-with-Compression-Springs-CA-3550-.jpg | Ultimate Strength Rating N/A 600 lb | Material N/A Steel | Finish N/A Cadmium and Olive Drab |
Drawings
|
