CA-3600 Over-Center Draw Latches
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3600 is manufactured from steel, 304 stainless or 316 stainless steel. The finish options include, clear zinc, yellow zinc, or a passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance.
Item # |
Hole Diameter |
Material |
Finish |

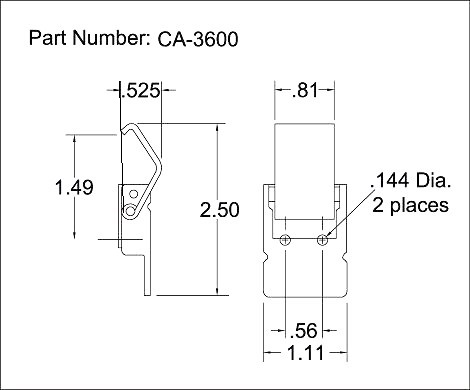

Drawings |
|---|---|---|---|---|
| CA-3600-ST-CZ-(.130 or .144) CA-3600-ST-CZ-(.130 or .144)/Asset/Over-Center-Draw-Latch-CA-3600-.jpg | Hole Diameter N/A | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
 |
| CA-3600-ST-YZ-144 CA-3600-ST-YZ-144/Asset/Over-Center-Draw-Latch-CA-3600-.jpg | Hole Diameter N/A | Material N/A Steel | Finish N/A Yellow Zinc |
Drawings
|
| CA-3600-SS-CP-144 CA-3600-SS-CP-144/Asset/Over-Center-Draw-Latch-CA-3600-.jpg | Hole Diameter N/A | Material N/A 304 Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-3600-316SS-NF-144 CA-3600-316SS-NF-144/Asset/Over-Center-Draw-Latch-CA-3600-.jpg | Hole Diameter N/A 0.144 in | Material N/A 316 Stainless Steel | Finish N/A |
Drawings
|
