CA-3700 Lockable Over-Center Draw Latches
Latches and Catches

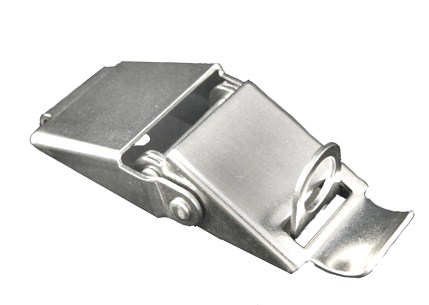

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This lockable catch is manufactured from either 316 stainless steel or 304 stainless steel with a passivated finish. This model allows for tension adjustment based on latch/keeper hole distance. Uses strikes SK-3700 and SK-3701.
Item # |
Hole Diameter |
Padlock Eye Diameter |
Material |
Finish |

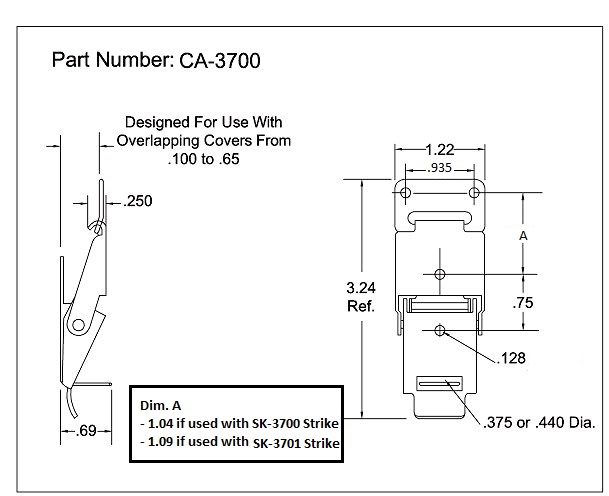

Drawings |
|---|---|---|---|---|---|
| CA-3700-316SS-CP-142 CA-3700-316SS-CP-142/Asset/Over-Center-Draw-Latch-Lockable-CA-3700-.jpg | Hole Diameter N/A 0.142 in | Padlock Eye Diameter N/A | Material N/A 316 Stainless Steel | Finish N/A Clear Passivated |
Drawings
 |
| CA-3700-316-SS-CP-128 CA-3700-316-SS-CP-128/Asset/Over-Center-Draw-Latch-Lockable-CA-3700-.jpg | Hole Diameter N/A 0.128 in | Padlock Eye Diameter N/A | Material N/A 316 Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-3700-316SS-CP-440 CA-3700-316SS-CP-440/Asset/Over-Center-Draw-Latch-Lockable-CA-3700-.jpg | Hole Diameter N/A 0.128 in | Padlock Eye Diameter N/A 0.440 in | Material N/A 316 Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-3700-SS-CP-142 CA-3700-SS-CP-142/Asset/Over-Center-Draw-Latch-Lockable-CA-3700-.jpg | Hole Diameter N/A | Padlock Eye Diameter N/A | Material N/A 304 Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
