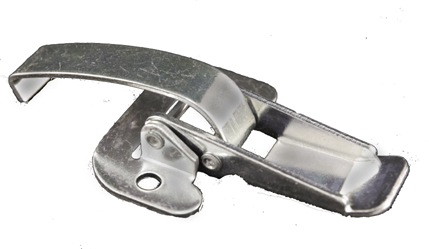

CA-4000 Over-Center Draw Latches with Solid Curved Hook
Latches and Catches
JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-4000 is manufactured from steel and stainless steel with finishes including, clear zinc and nickel. This model has been tested to 250 Lbs. and is available with holes. Uses strikes SK-4000 and SK-4001.
For a curved base refer to CA-4020.
For a curved base refer to CA-4020.
Item # |
Material |
Finish |

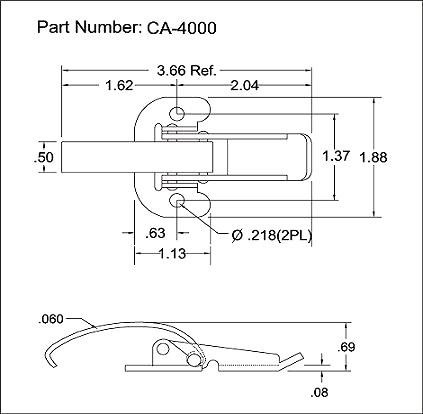

Drawings |
|---|---|---|---|
| CA-4000-ST-YZ-218-Flat Base CA-4000-ST-YZ-218-Flat Base/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Steel | Finish N/A Zinc Yellow Chromate |
Drawings
 |
| CA-4000-ST-CZ-218 CA-4000-ST-CZ-218/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
|
| CA-4000-SS-CP-218 CA-4000-SS-CP-218/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
|
| CA-4000-ST-NI-218 CA-4000-ST-NI-218/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Steel | Finish N/A Nickel |
Drawings
|
| CA-4020-SS-NF-218 CA-4020-SS-NF-218/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Stainless Steel | Finish N/A No Finish |
Drawings
|
| CA-4000-ST-NF-000 CA-4000-ST-NF-000/Asset/Over-Center-Draw-Latch-Curved-Hook-CA-4000-.jpg | Material N/A Steel | Finish N/A No Finish |
Drawings
|
